Precise Adaptation · Long-term Reliability: SKL Bearings Empower Pulp and Paper
In the pulp and paper production line, equipment operates in extreme working conditions of high humidity, heavy load, high impurity content, and strong corrosion for a long time. As a core transmission component, the selection of bearings directly determines the operational stability, production efficiency, and total life cycle cost of the equipment.
With material innovation, structural optimization, and scenario-based customization capabilities, German SKL bearings are deeply adapted to the equipment needs of all links in pulp making. From the pulping, screening, washing to bleaching sections, they fully replace traditional bearings, achieving a subversive improvement in equipment operational efficiency, service life, and maintenance costs.
(I) Pulping Equipment: Heavy Load Support Under High Impact and High Humidity Environments
1. Horizontal Pulper (Waste Paper Pulping)
- Core Components: Rotor Drive Shaft
- Pain Points of Traditional Bearings: Weak sealing, easy intrusion of moisture and pulp fibers; poor corrosion resistance of materials, rust and jamming occur within 3-6 months; insufficient impact resistance, load fluctuations easily lead to fatigue pitting.
- SKL Selection: SKL 6314-2RSR Stainless Steel Deep Groove Ball Bearing (P6 Precision)
- Core Advantages: Adopts 440C stainless steel material (chromium content 16%-18%), improving wet corrosion resistance by 4 times; double-lip nitrile rubber seal (2RSR) reaches IP65 protection, completely blocking fibers and moisture; super-finished raceway, reducing friction coefficient by 30%, suitable for high-speed operation of 1450rpm.

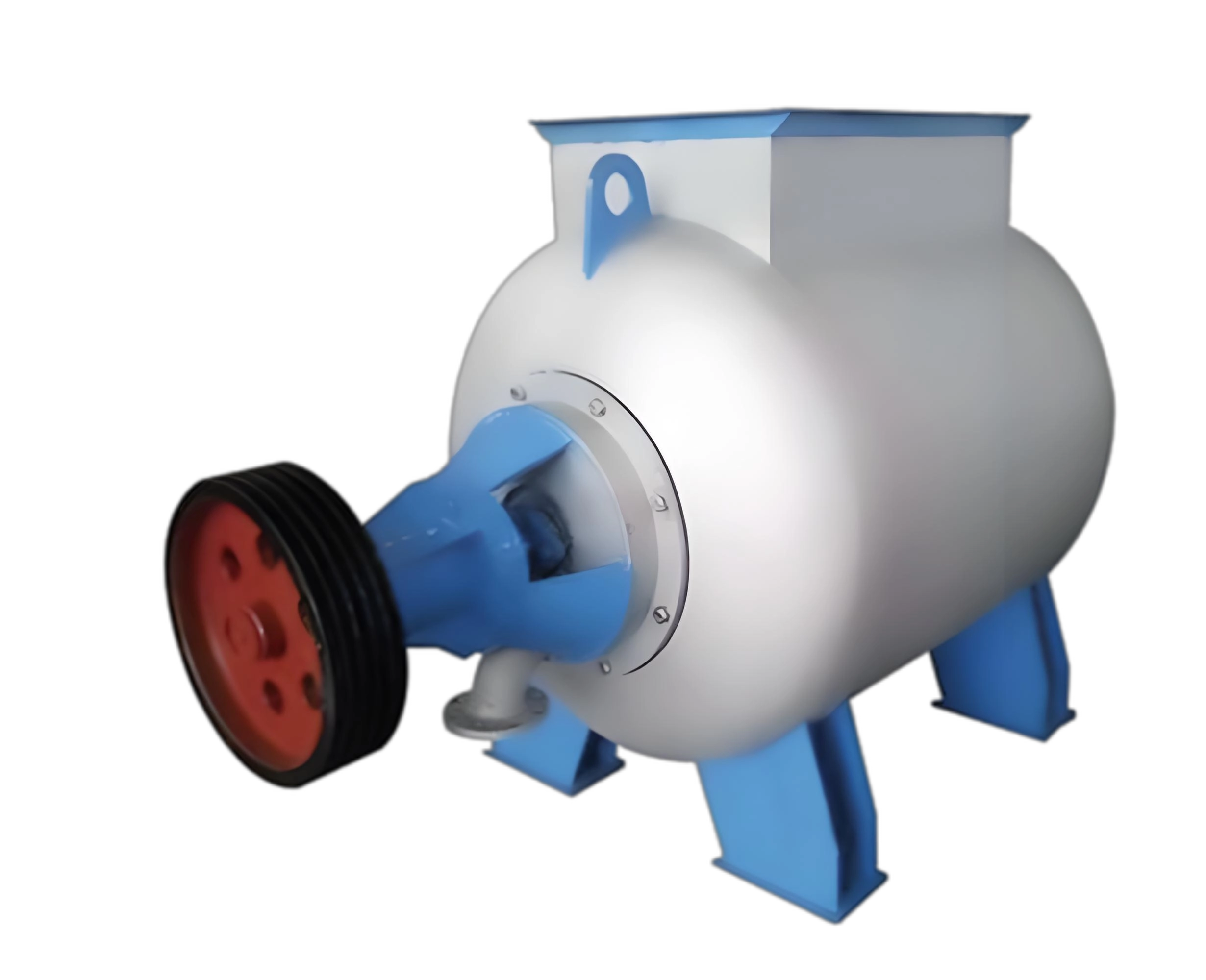

2. Secondary Pulper (High Consistency Pulping)
- Core Components: Impeller Main Shaft
- Pain Points of Traditional Bearings: Low raceway hardness, fast wear caused by pulp impurities; insufficient load-bearing capacity, axial movement easily causes failures; service life is only 4-6 months.
- SKL Selection: SKL 32318 Heavy-duty Tapered Roller Bearing
- Core Advantages: Carburizing and hardening treatment on the inner ring surface (HRC62-65), improving wear resistance by 3 times; double-row roller design, increasing radial load-bearing capacity by 40%, capable of withstanding strong axial impact at the same time; optimized contact angle design, adapting to ±3° axial movement, avoiding edge stress concentration.
(II) Screening and Purification Equipment: Stable Guarantee of High Precision and Low Vibration

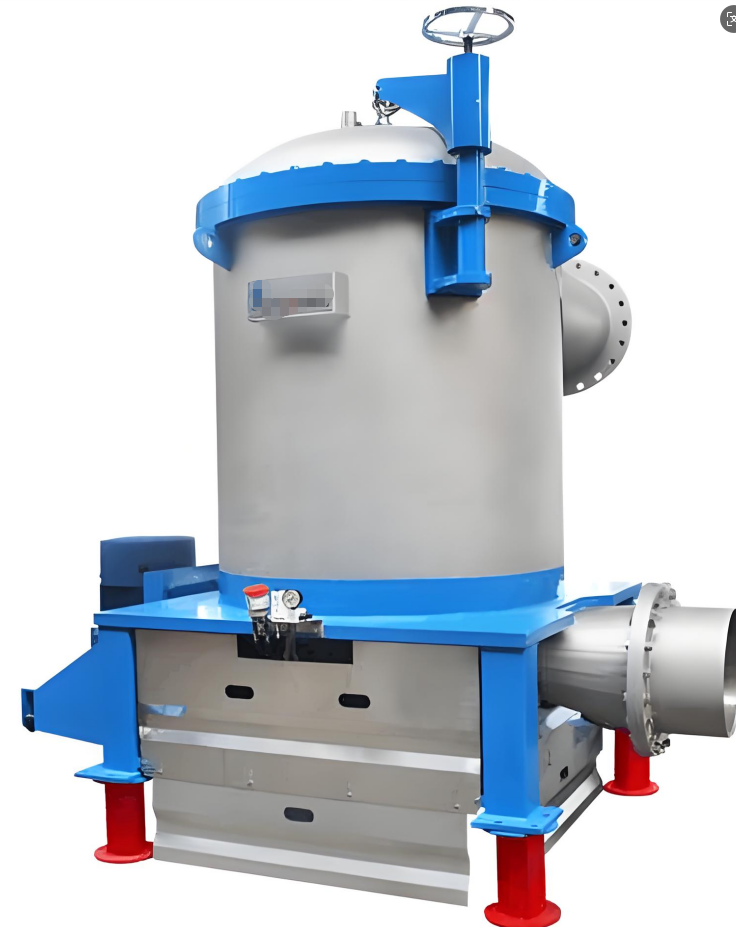

1. Pressure Screen/Centrifugal Screen
- Core Components: Screen Drum Rotor, Drive Shaft
- Pain Points of Traditional Bearings: Low precision (P0 grade), poor rotor concentricity, high vibration and fast wear of screen drum; severe heating at high speed, fast lubrication failure.
- SKL Selection: SKL NU226ECM Precision Cylindrical Roller Bearing (P5 Precision)
- Core Advantages: P5 grade manufacturing tolerance, radial runout ≤0.005mm, ensuring rotor concentricity; logarithmic profile modification of rollers, uniform load distribution, reducing vibration by 40% and noise by 15dB at high speed (1800rpm); brass cage, high temperature and wear resistance, suitable for continuous operation.

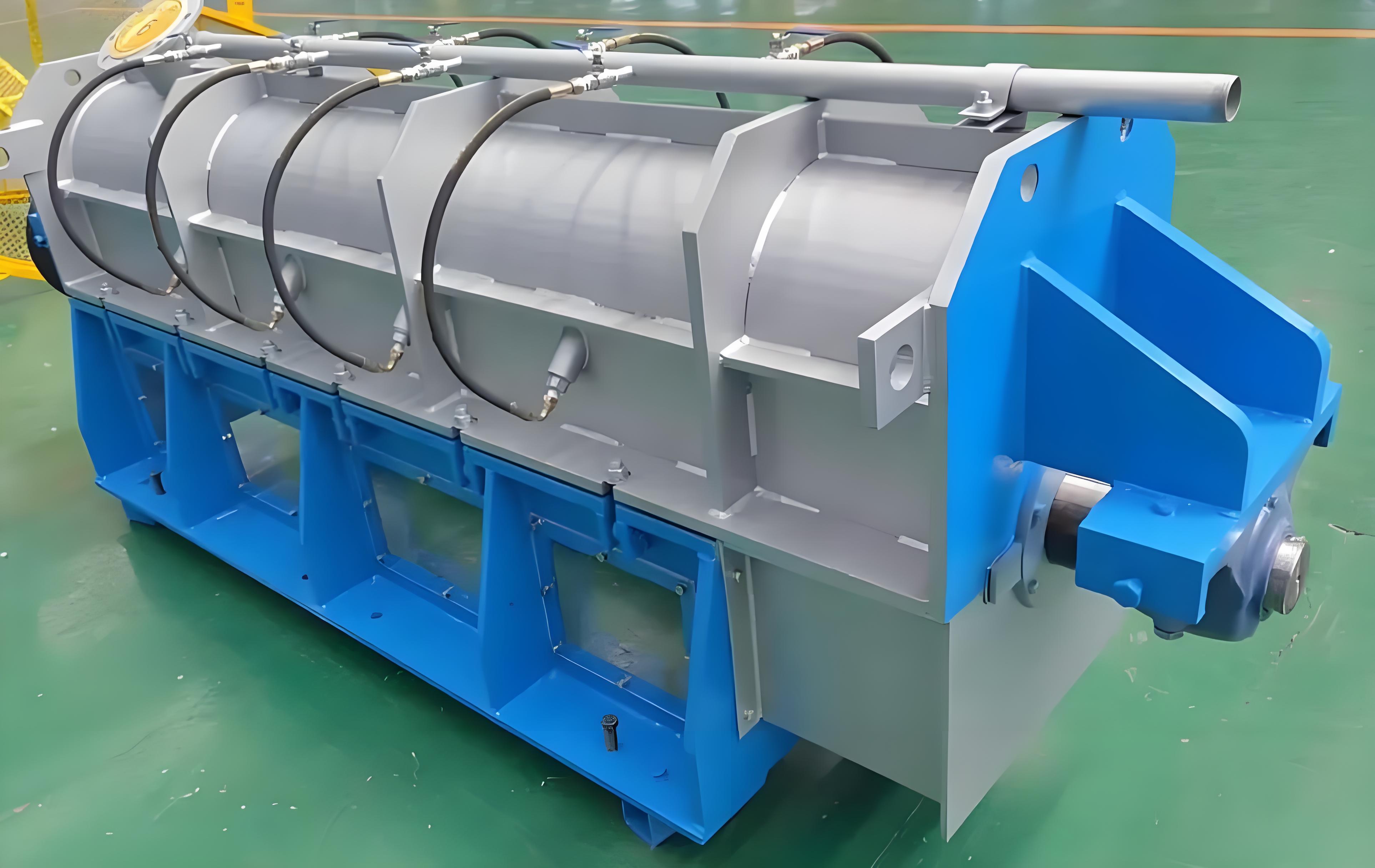

2. Fiber Refiner
- Core Components: Main Shaft, Moving Gear Ring Drive Shaft
- Pain Points of Traditional Bearings: Insufficient self-aligning capacity, easy jamming due to shaft thermal deformation; poor sealing, pulp dust intrusion leading to lubrication failure; short maintenance cycle.
- SKL Selection: SKL 22320CA/W33 Self-lubricating Spherical Roller Bearing
- Core Advantages: Spherical raceway design, automatically compensating for 0.5°-1.5° shaft bending and installation errors; internal filling of solid oil lubrication, extending maintenance-free period to 12 months; enhanced roller profile, increasing rated dynamic load by 30%, suitable for refiner strong impact working conditions.
(III) Washing and Concentration Equipment: Long-term Adaptation to Humid and Dusty Working Conditions

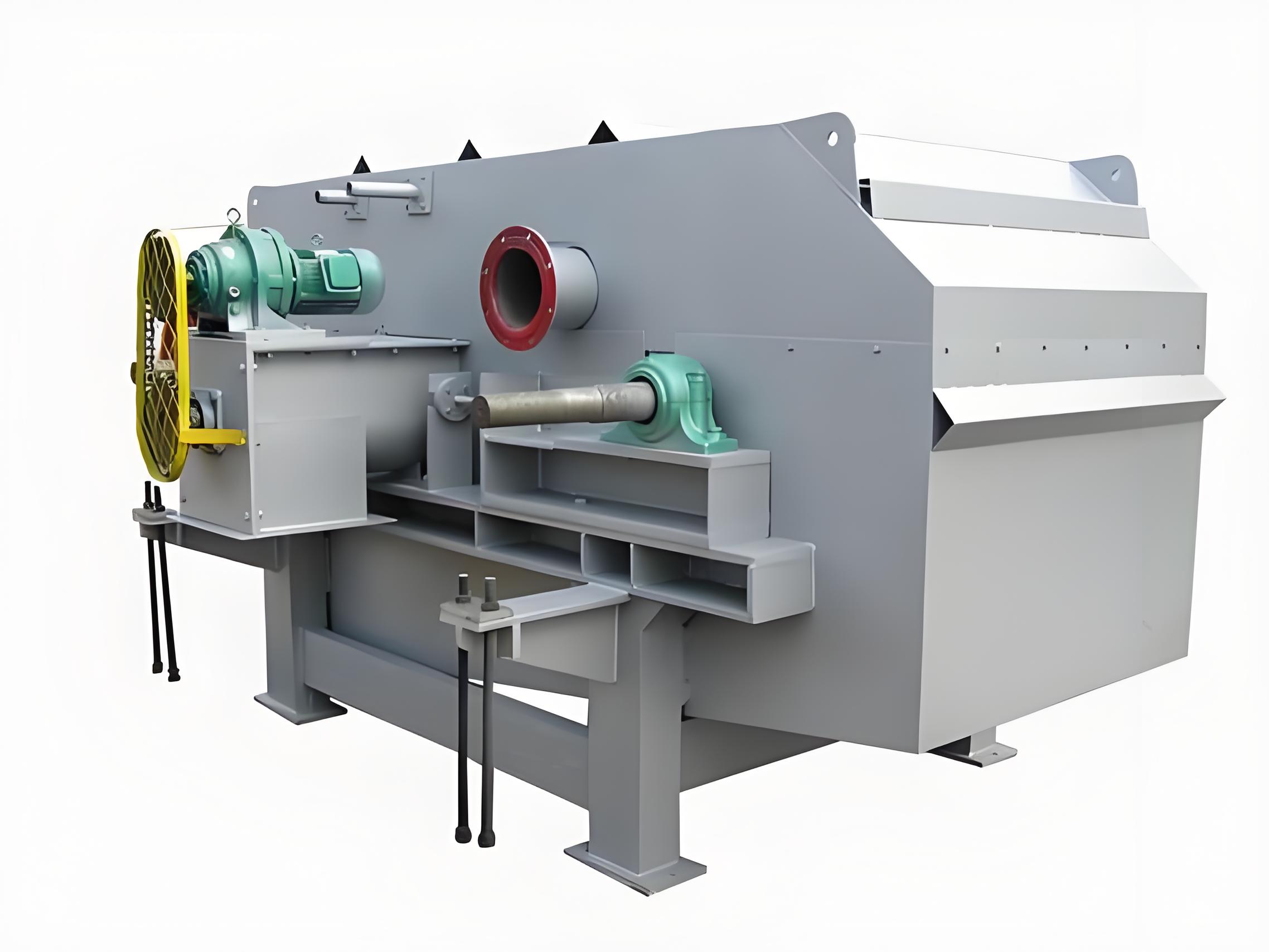

1. Vacuum Washer/Drum Washer
- Core Components: Filter Drum Support Shaft, Drive Roller
- Pain Points of Traditional Bearings: Grease emulsification in humid environment, increased friction; fast sealing failure, impurity intrusion leading to increased wear; service life 6-8 months.
- SKL Selection: SKL 23224CC/W33 Solid Oil Spherical Roller Bearing
- Core Advantages: Porous polymer solid oil lubrication, oil storage capacity 3 times that of traditional grease, on-demand release and automatic absorption, completely solving the emulsification problem; fluororubber + PTFE composite seal, IP66 protection, dust intrusion reduced to 15mg/m³; service life extended to 24 months in humid environment.
(IV) Bleaching Equipment: Anti-corrosion Breakthrough in Strong Corrosion Environment

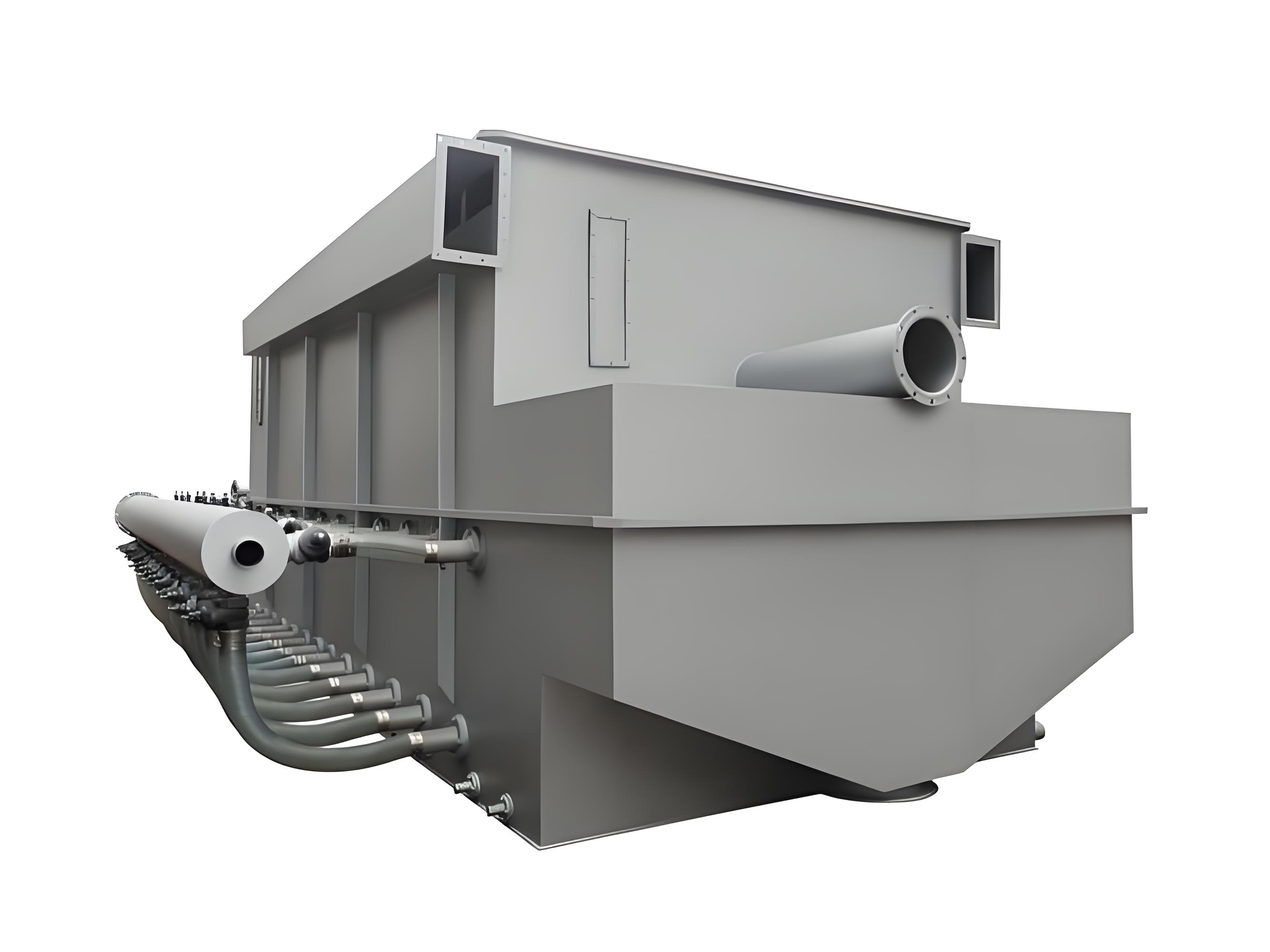

1. Bleaching Tower, Flotation Deinking Machine
- Core Components: Stirring Shaft, Deinking Rotor
- Pain Points of Traditional Bearings: Easy peeling of coating, corrosion of inner ring by media such as ClO₂ and NaOH; rust and precision loss occur within 1-3 months; frequent maintenance and high downtime rate.
- SKL Selection: SKL S6217 Ceramic Hybrid Bearing, SKL 1216 Corrosion-resistant Self-aligning Ball Bearing
- Core Advantages: Hybrid bearing adopts Si₃N₄ ceramic rolling elements, resistant to 99% chemical media corrosion, friction coefficient <0.1; self-aligning ball bearing adopts 316L stainless steel, surface passivation treatment, no corrosion after 2000 hours of continuous operation in acidic (pH=5) environment; service life is 4 times longer than traditional bearings, failure rate reduced to below 3%.
II. Core Advantages of SKL Bearings: Comprehensive Leap from Performance to Service Life
1. Material Innovation: Breaking the Performance Limit of Traditional Bearings
- Special Stainless Steel/Alloy: 440C, 316L high-purity materials, far exceeding ordinary GCr15 bearing steel in wet corrosion and acid-base corrosion resistance, suitable for corrosive environments of all pulp making sections.
- Ceramic/Hard Alloy Technology: Rolling elements adopt silicon nitride ceramics or hard alloys, hardness up to HRA90, wear resistance improved by 3-10 times, stable operation without lubrication.
- Solid Oil Lubrication: Nano-scale porous polymer matrix, locking high-quality synthetic oil, achieving "lifetime lubrication", reducing lubricant consumption by 82%.
2. Structural Optimization: Precisely Adapting to Pulp Making Working Conditions
- Heavy Load Reinforcement Design: Double-row full complement rollers, optimized raceway curvature, rated load increased by 30%-50%, impact resistance increased by 50%.
- High Precision Manufacturing: Core products reach P5/P4 grade precision, radial runout and clearance controlled at micron level, ensuring the stability of high-speed components.
- Composite Sealing System: Triple protection of dynamic oil film + static seal ring + pressure balance valve, IP66/IP67 protection, completely blocking the intrusion of water, dust and fibers.
3. Scenario-based Customization: Full Life Cycle Solution
- Aiming at the four major pain points of pulp making equipment: high humidity, heavy load, corrosion and high speed, providing exclusive models and structural designs instead of standardized product adaptation.
- Supporting customized lubrication, installation and maintenance schemes to achieve perfect matching of bearings with equipment and working conditions.
III. Changes Before and After Application: Production Value Upgrade Brought by SKL Bearings

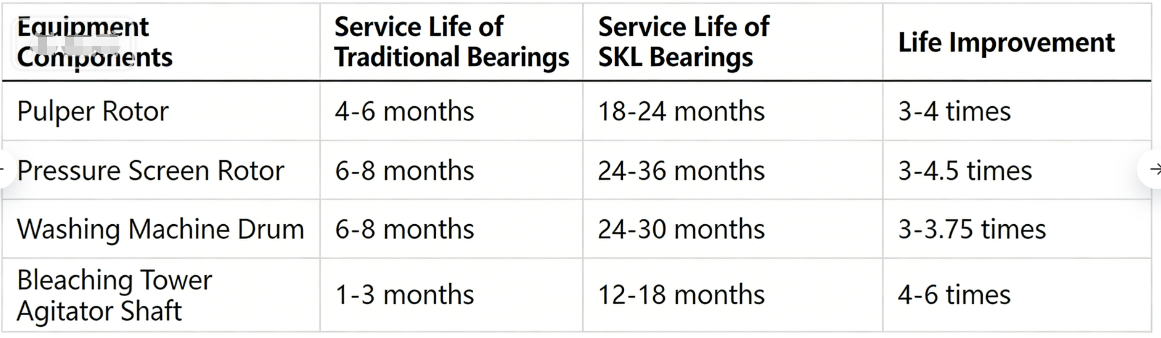

(I) Operational Life: Significantly Extended, Maintenance Cost Plummeted
(II) Equipment Stability: Reduced Failures, Improved Efficiency
- Failure rate reduced by 70%-80%, unplanned downtime reduced by more than 60%.
- Reduced vibration and noise, reduced wear of screen drum and roller, pulp qualification rate increased by 3%-5%.
- Friction loss reduced by 18%-25%, single equipment saves 15,000-30,000 kWh of electricity per year.
(III) Maintenance Cost: Total Life Cycle Cost Optimization
- Labor cost for lubrication, replacement and maintenance reduced by 60%-70%.
- Although the bearing purchase cost is increased by 15%-20%, the total cost is reduced by 30%-40% considering comprehensive maintenance and downtime losses.
IV. Core Advantages of SKL Company: German Precision and Full-chain Service
1. Technological R&D: Industry-leading Innovation Capability
- German R&D center + global technology laboratories, investing 8% of annual sales in R&D of materials, structures and lubrication technologies.
- Possessing more than 30 patents such as solid oil lubrication, ceramic hybrid bearings and composite seals, continuously leading the direction of high-end bearing technology.

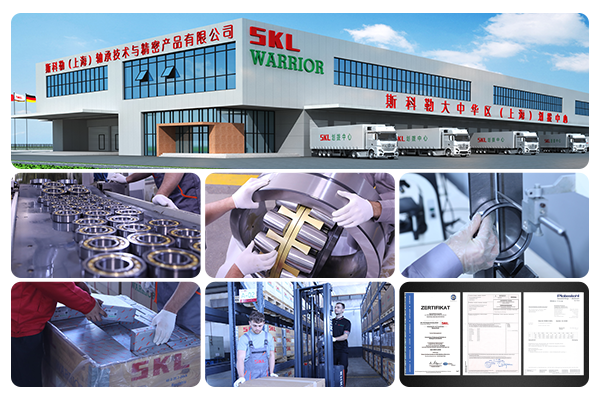

2. Production and Manufacturing: High Precision · Full-process Quality Control
- Automatic turning, grinding and heat treatment production lines, core process precision reaches nanometer level.
- Full-process quality inspection (raw materials, heat treatment, grinding and superfinishing, assembly, finished products), factory qualification rate 100%, defect rate controlled within 0.01%.
3. Customized Service: Exclusive Solutions for Pulp and Paper Industry
- Industry technical team has been deeply engaged in the pulp and paper field for more than 15 years, familiar with the working conditions and pain points of equipment in each section.
- Providing one-stop service of "selection design - product customization - installation and commissioning - condition monitoring - operation and maintenance guidance".
- 48-hour quick response and 72-hour emergency order delivery to ensure continuous operation of the production line.
4. Industry Reputation: A Reliable Partner in the Pulp and Paper Field
- Serving more than 200 pulp and paper enterprises, covering large domestic paper mills and high-end overseas production lines.
- Replacing imported brands such as SKF and NSK, realizing large-scale application in waste paper pulping, chemical pulping, high-consistency refining and other scenarios, and winning high recognition from the industry.
Conclusion
Although bearings are small, they are the "heart and joints" of pulp making equipment. With four core capabilities of material revolution, structural innovation, scenario customization and full-chain service, SKL bearings accurately solve the working condition problems of high humidity, heavy load, corrosion and high impurity content of pulp and paper equipment, achieving a triple value upgrade of equipment service life, operational efficiency and maintenance cost.
In the current era of pulp and paper industry transforming towards high efficiency, green and intelligence, choosing SKL bearings means choosing the core guarantee of long-term stability, cost reduction, efficiency improvement and worry-free operation and maintenance, laying a solid foundation for the high-quality operation of the pulp making production line.
