Special Bearing Selection for Sand Making Machines: Complete Analysis of SKL Bea

As the core equipment in sand and aggregate production, sand making machines operate for long periods under harsh conditions of high impact, heavy loads, and high dust levels. As the “heart” component, bearings directly determine the operational stability, production efficiency, and service life of the equipment. With German precision engineering and customized design for mining scenarios, SKL bearings have become the mainstream choice for sand making machine bearing upgrades. From component matching and model selection to performance improvement, they comprehensively reshape the bearing application ecosystem for sand making equipment.

I. Bearing Applications in Core Components of Sand Making Machines & SKL Selection Solutions

Different components of sand making machines feature significant differences in load characteristics, speed requirements, and operating conditions. SKL provides customized bearing selections for all key components, covering the main shaft, rotor, transmission, support, and other critical parts, suitable for mainstream sand making machine types including VSI, HVI, hammer, and roller crushers.

(1) Main Shaft Assembly: Core Load-Bearing Part, Dual Requirements of Heavy Load & Self-Aligning

The main shaft is the core of power transmission in sand making machines, bearing radial impact loads and axial forces. Shaft deflection is also likely due to thermal deformation and assembly errors, making bearing selection a top priority.

Application positions: Upper and lower main shaft supports, main shaft housing positioningSKL recommended models:

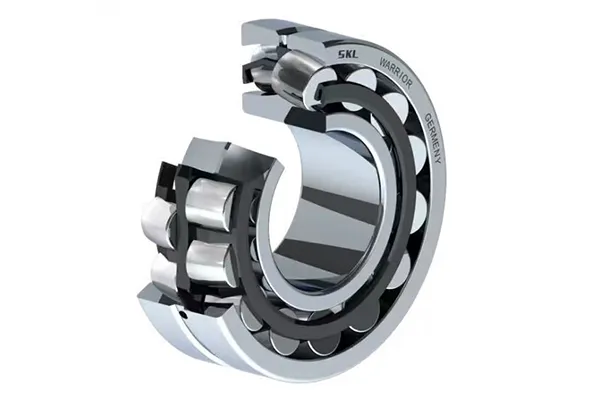

· Spherical roller bearings: 22332-E1, 23136-E1, 22236-E1-K (suitable for mainstream models such as JYS9928, VSI9526)

· Cylindrical roller bearings: NU332, NU2328-E-M1-C4 (for pure radial heavy-load scenarios)

Selection logic: Spherical roller bearings adopt a double-row spherical roller + spherical raceway design, compensating for 0.5°–1.5° shaft deflection and avoiding edge stress concentration. Cylindrical roller bearings feature high load capacity, ideal for pure radial impact conditions.

(2) Rotor / Impeller Assembly: High-Speed Impact, Priority on Fatigue Resistance & Sealing

The rotor/impeller rotates at high speed (1500–3000 r/min), driving material impact crushing, and bears alternating impact loads. Dust easily intrudes into the bearing interior, requiring both fatigue resistance and sealing performance.

Application positions: Rotor shaft support, impeller center bearingSKL recommended models:

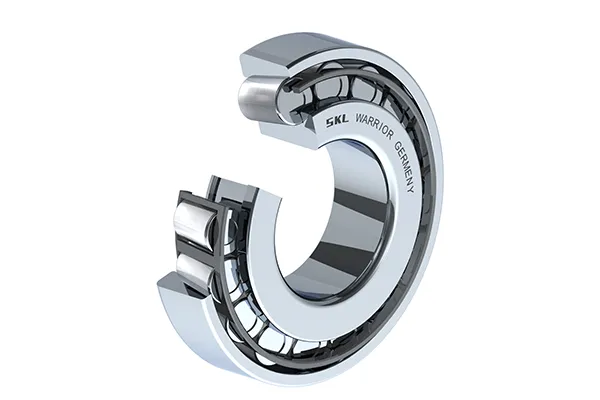

· Tapered roller bearings: 32326, 32230 (bear combined radial + axial loads)

· Deep groove ball bearings: 6332, 6328 (auxiliary support for high-speed low-load scenarios)

Selection logic: Tapered roller bearings can withstand bidirectional axial forces simultaneously, adapting to combined loads during rotor rotation. Deep groove ball bearings feature a simple structure and high speed, suitable for auxiliary positioning.

(3) Transmission System: Pulley / Gearbox, Precise Transmission & Low Friction

The transmission system connects the motor and main shaft for power transmission, requiring low-friction, high-precision bearings to reduce power loss.

Application positions: Pulley bearings, gearbox input/output shaft bearingsSKL recommended models:

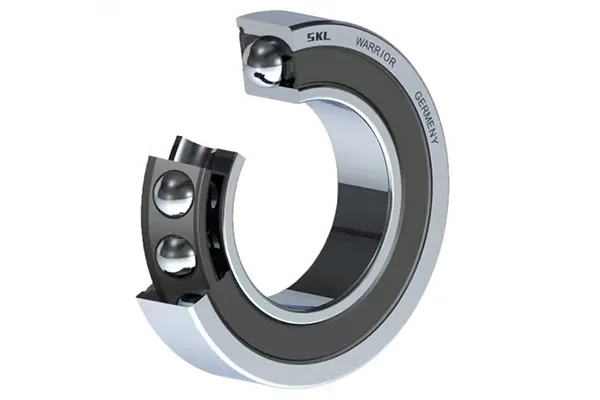

· Angular contact ball bearings: 7318-B, 7220-B (bear radial + unidirectional axial loads, suitable for gear transmission)

· Self-aligning ball bearings: 1318, 2218 (transmission support for small sand making machines, self-aligning + light load)

Selection logic: Angular contact ball bearings can bear combined loads with precision up to P5 class, ensuring transmission accuracy. Self-aligning ball bearings adapt to slight shaft misalignment, reducing installation difficulty.

(4) Auxiliary Support Components: Stable Frame, Universal & Durable

Including base supports, feed hopper bearings, hydraulic system bearings, etc., bearing the equipment’s self-weight and slight vibration, focusing on versatility and durability.

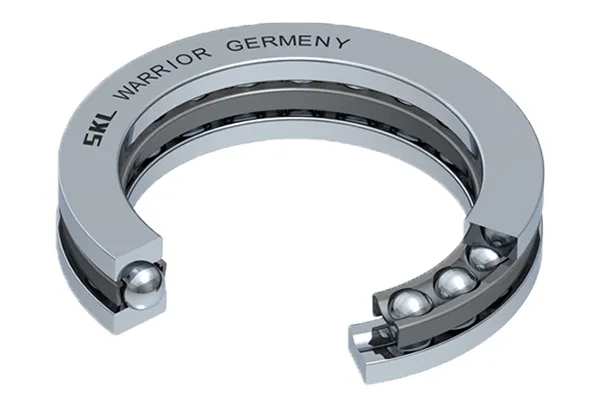

Application positions: Base support bearings, hydraulic cylinder bearings, feed hopper shaft bearingsSKL recommended models: Deep groove ball bearings 6224, 6228; Thrust ball bearings 51226 (axial support)

Selection logic: Universal bearings feature moderate cost and convenient maintenance, suitable for low-load, low-speed conditions of auxiliary parts.

II. Core Advantages of SKL Bearings: Technical Barriers Adapted to Harsh Sand Making Conditions

Targeting the high-impact, high-dust, wide-temperature-range conditions of sand making machines, SKL achieves technological breakthroughs in four dimensions: materials, structure, sealing, and lubrication, with performance far exceeding conventional bearings.

(1) Super Load Capacity & Impact Resistance: Stable Operation Under Heavy Loads

Adopts special alloy steels (GCr15SiMn, Cr4Mo4V) combined with vacuum degassing and electroslag remelting processes, improving purity by 40% and impact strength by 50%.Optimized roller profile and raceway curvature ratio enhance load distribution uniformity by 40%. Dynamic rated load is 30%–45% higher than traditional bearings, capable of withstanding instantaneous impact loads of sand making machines.Solid cage (CA type) design prevents roller tilting under impact, avoiding jamming and fracture risks.

(2) Excellent Sealing & Dustproofing: Long-Lasting Protection in Dusty Environments

Multi-layer sealing structure (double-lip NBR seal + labyrinth seal) achieves IP6X dustproof rating, effectively blocking ore powder and sand intrusion.Special treatment of sealing lips adapts to a wide temperature range of -30°C to 150°C, without softening at high temperatures or brittleness at low temperatures, doubling sealing life.Optimized internal lubrication channels with dedicated high-temperature grease reduce grease loss by 60%, maintaining long-term lubrication.

(3) High Precision & Low Friction: Improve Efficiency, Reduce Energy Consumption

Manufacturing precision reaches P5 class or above. Precise fitting clearance between inner/outer rings and rolling elements reduces friction coefficient by 30%, cutting energy loss.Super-finished surfaces (Ra ≤ 0.2μm) reduce raceway roughness, lowering wear rate by 50% and significantly extending bearing life.Compatible with oil circulation lubrication systems with oil coolers, controlling bearing temperature rise within 25°C to avoid high-temperature failure.

(4) Wide Temperature Range & Corrosion Resistance: Adapt to Extreme Production Environments

Special heat treatment ensures dimensional stability from -30°C to 150°C, without abnormal clearance caused by thermal expansion and contraction.Stainless steel series (440C, 304 materials) with 16%–18% chromium content forms a dense oxide film, resisting moisture and acid-base corrosion, suitable for crushing wet or corrosive materials.

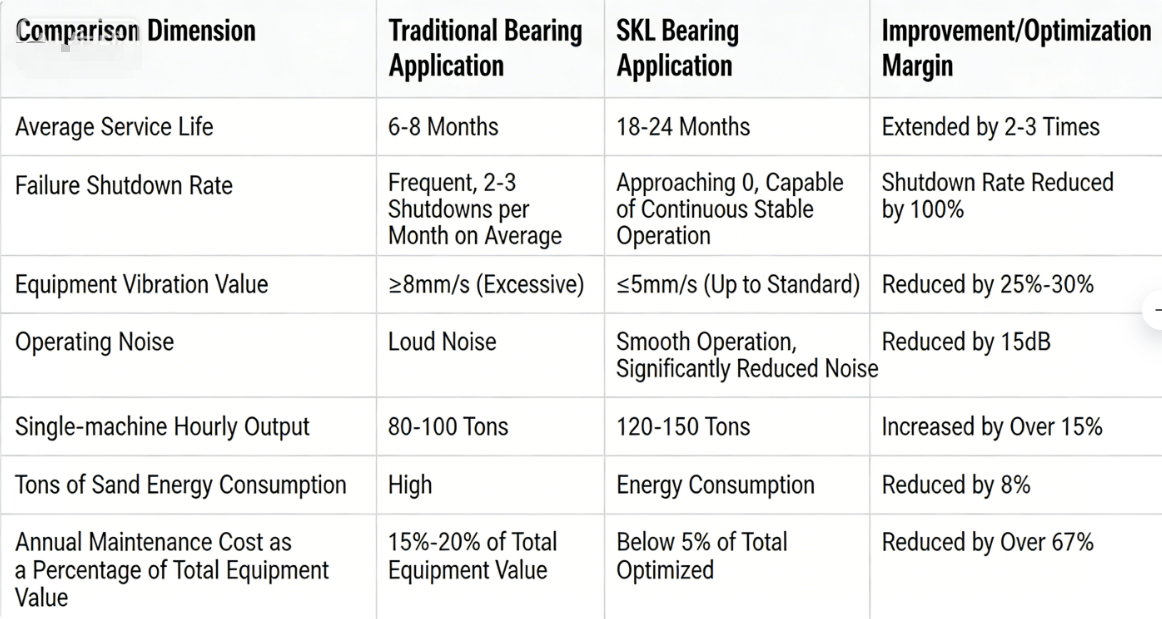

III. Changes Before & After Applying SKL Bearings: From Frequent Failures to Long-Lasting Stability

Traditional sand making machines often use general domestic bearings or ordinary imported bearings, which suffer from insufficient load capacity, poor sealing, and short service life. After replacing with SKL bearings, equipment performance is comprehensively upgraded.

Note: The above data is based on mainstream VSI and HVI sand making machines under conventional sand crushing conditions. Specific values may vary slightly according to machine models and material characteristics.

IV. Core Strengths of SKL: Full-Chain Empowerment for Sand Making Machine Bearing Applications

As a German precision bearing manufacturer, SKL not only provides high-performance products but also becomes a reliable partner for sand making machine enterprises through technical services, customized solutions, and full life cycle support.

(1) R&D Advantages: Deep Customization for Mining Scenarios

With a local R&D center in Germany and over 30 years of focus on mining machinery bearing technology, SKL has built a dedicated database for sand making machine conditions, enabling rapid matching of optimal selection solutions.Continuous iteration and upgrading launch customized product lines such as the WARRIOR Series and X-Life Series, adapting to different sand making machine models and material characteristics.Leading material technology masters core processes such as special alloys and ceramic bearings (silicon nitride), suitable for extreme working conditions.

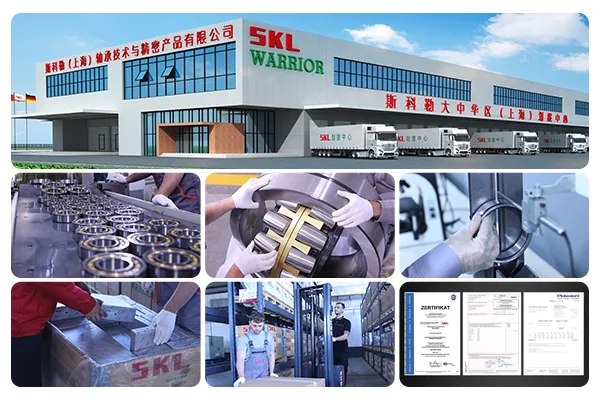

(2) Manufacturing Advantages: German Precision & Strict Quality Control

Fully automated production with micron-level precision control and 100% inspection of key processes, ensuring high product consistency.Complies with ISO9001 and ISO14001 quality systems. Each batch of bearings passes more than 20 rigorous tests including fatigue, impact, and sealing tests.Global supply chain layout with core components imported directly from Germany, ensuring stable product quality.

(3) Service System Advantages: Full Life Cycle Technical Support

Provides free selection consultation, customizing bearing solutions based on sand making machine model, capacity, and material characteristics to avoid selection errors.On-site technical guidance for installation and commissioning, optimizing bearing fitting clearance and lubrication schemes for optimal operation.Establishes customer profiles and provides regular inspections, life prediction, and fault diagnosis for preventive maintenance.Fast after-sales response with 24-hour technical support and 48-hour on-site service in core areas, reducing downtime losses.

(4) Cost-Effectiveness Advantages: High-End Quality + Reasonable Cost

German precision quality with performance comparable to top international brands, yet priced 15%–20% lower, delivering outstanding cost-effectiveness.Long service life and low maintenance reduce overall operating costs by more than 40% compared with traditional bearings, achieving high return on investment.Supports mass customization and spot supply, shortening delivery cycles to meet the large-scale production needs of sand making enterprises.

Conclusion

Bearings are the core guarantee for stable operation of sand making machines. With customized selection, high-performance design, and full-chain services, SKL bearings perfectly adapt to the harsh conditions of sand making equipment, achieving an upgrade from “frequent failures” to “long-lasting stability”. As the aggregate industry raises requirements for equipment reliability and production efficiency, SKL bearings will become the preferred choice for sand making machine bearing selection with technological and service advantages, helping sand enterprises reduce costs, improve efficiency, and achieve high-quality development.
