Material preparation is the primary stage in papermaking. Equipment operates for a long time under high load, high dust, high humidity and strong impact conditions. As a core transmission component, bearing selection directly determines equipment stability, efficiency and maintenance costs. SKL, a professional German bearing brand, has become the preferred choice for material preparation equipment bearings thanks to its excellent performance. This article concisely analyzes the adapted models for core components and bearing advantages, presents changes before and after application with data tables, and balances professionalism and readability.

I. SKL Bearing Selection for Core Components of Material Preparation Equipment (Precise Adaptation)

Material preparation equipment mainly includes four categories: crushing, screening, conveying and grinding. Working conditions vary greatly among different components. SKL provides targeted models to efficiently adapt to complex scenarios.

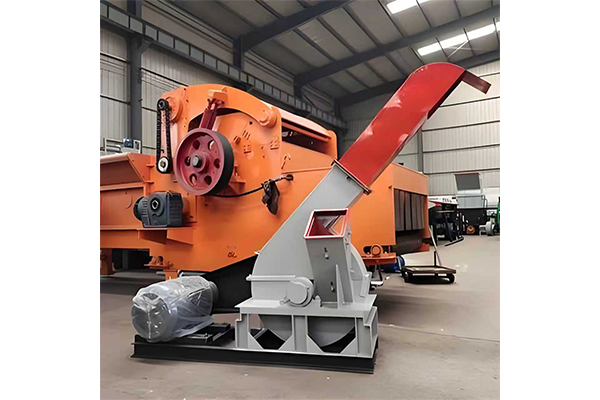

(1) Crushing Equipment (Chippers, Crushers)

Core components: Rotor, cutter shaft (Conditions: high-speed rotation, strong impact, high dust)

1. Rotor shaft end: SKL Spherical Roller Bearings (22322-E1-K, 22324-E1-K) — Self-aligning to compensate for misalignment, high-strength wear resistance, enhanced sealing against dust, extended service life.

2. Cutter shaft support: SKL Cylindrical Roller Bearings (NU318-E, NU320-E) — High radial load capacity, low friction coefficient, restricted axial displacement, ensuring uniform crushing.

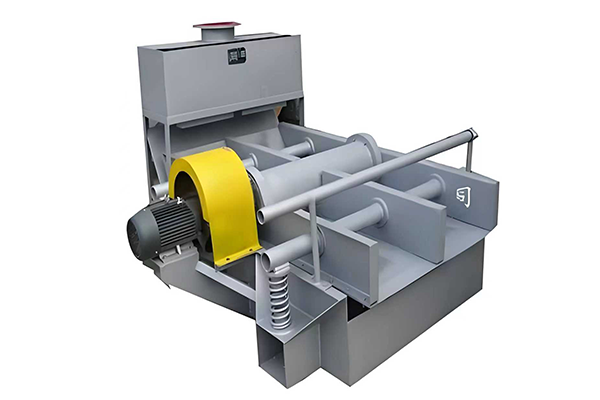

(2) Screening Equipment (Vibrating Screens, Pressure Screens)

Core components: Vibrator, screen frame support shaft, pressure screen main shaft (Conditions: high-frequency vibration, continuous operation)

1. Vibrator: SKL Deep Groove Ball Bearings (6312-2RSR, 6314-2RSR) — Double-sided sealing, stable operation, low noise, adapted to high-speed operation.

2. Screen frame support shaft: SKL Self-aligning Ball Bearings (1216-TVH, 1218-TVH) — Self-aligning to prevent jamming, fatigue resistant, compact structure and easy maintenance.

3. Pressure screen main shaft: SKL Tapered Roller Bearings (32216-A, 32218-A) — High precision, impact resistant, wear and high temperature resistant, ensuring spindle concentricity.

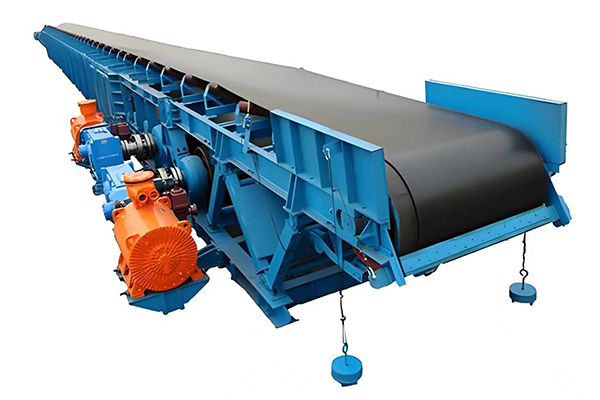

(3) Conveying Equipment (Belt Conveyors, Screw Conveyors)

Core components: Drum, screw shaft (Conditions: low speed & heavy load, dust abrasion)

1. Drum shaft end: SKL Spherical Roller Bearings (22220E1-K, 22222E1-K) — Adapted to heavy loads, self-aligning to compensate for deviations, labyrinth sealing against debris.

2. Screw shaft: SKL Cylindrical Roller Bearings (NJ216E-TVP2, NJ218E-TVP2) — Restricts axial displacement, excellent wear resistance and lubrication, suitable for low-speed heavy-load operation.

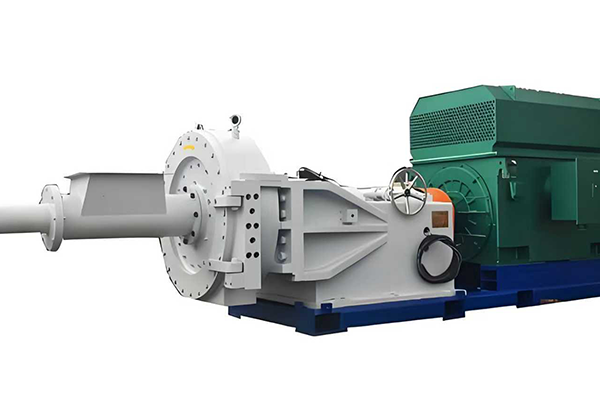

(4) Grinding Equipment (Fiber Defibers, Refiners)

Core components: Main shaft, grinding roll (Conditions: high speed & heavy load, high temperature, slurry erosion)

1. Main shaft support: SKL Angular Contact Ball Bearings (HCB7218-E-T, HCB7220-E-T) — High precision, high temperature resistant, low vibration and noise, improving grinding accuracy.

2. Grinding roll shaft end: SKL High-Temperature Cylindrical Roller Bearings (N320-E-M1, N322-E-M1) — Resistant to high temperature and erosion, high radial load capacity, extended service life.

II. Core Advantages of SKL Bearings (Adapted to Harsh Material Preparation Conditions)

· Wear & Impact Resistance: Premium materials and advanced processes improve wear resistance by 3–5 times and impact resistance by 60% compared with ordinary bearings, reducing early failure.

· Excellent Sealing: Multiple sealing structures enhance sealing performance by over 40%, effectively blocking dust and moisture, suitable for harsh environments in material preparation workshops.

· High Precision & Stability: Manufactured in accordance with German DIN standards, precision up to P4 grade or higher, radial runout ≤ 1μm, adapted to 24-hour continuous operation.

· Cost-Effectiveness: Service life increased by 2–3 times (L10 ≥ 30,000 hours), maintenance frequency reduced by 60%, significantly lowering overall costs.

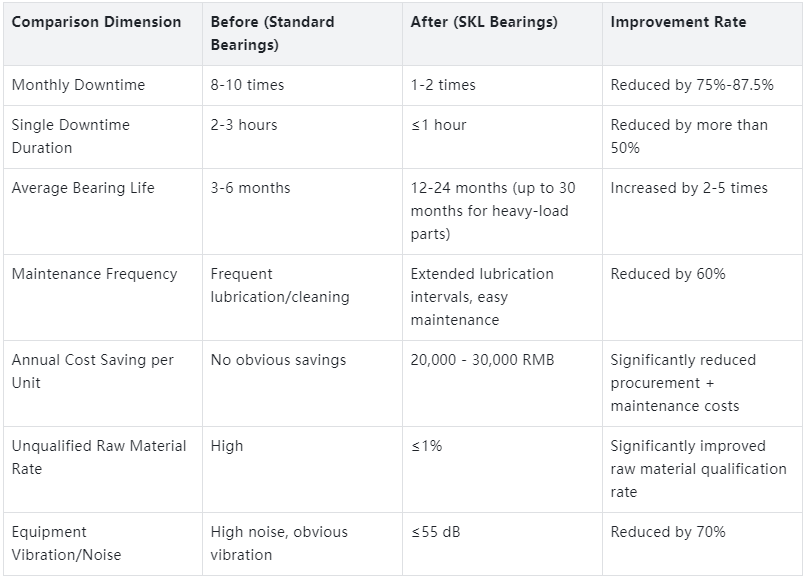

III. Changes Before & After Applying SKL Bearings to Material Preparation Equipment (Data Comparison)

IV. Core Strengths of SKL (Worry-Free Selection Support)

With over 60 years of expertise in the bearing industry, SKL is headquartered in Germany and provides comprehensive support for bearing selection in papermaking material preparation equipment:

· R&D & Manufacturing: Professional team + advanced equipment, compliant with ISO9001 standards, product pass rate over 99.9%.

· Models & Customization: Over 18,000 stock models, standard products shipped within 2 days, customized solutions for extreme working conditions available.

· Service Support: Localized service in China, selection report provided within 48 hours, on-site installation & commissioning plus rapid after-sales response.

· Cost-Effectiveness: 15%–20% lower cost than comparable high-end imported bearings, directly replaceable with ordinary bearings without equipment modification.

Conclusion

SKL bearings are precisely adapted to all core components of papermaking material preparation equipment. With advantages of wear resistance, sealing and high precision, they solve pain points of traditional bearings such as frequent downtime, short service life and high costs. Combined with SKL’s comprehensive services and cost-effectiveness, they are the preferred choice for papermaking enterprises in bearing selection for material preparation equipment. In the future, SKL will continue to innovate and support the efficient and energy-saving development of the papermaking industry.
