I. Core Characteristics of SKL Stainless Steel Bearings for Precision Instruments

1. Ultraprecision Dimensional Accuracy Fabricated from highpurity 440C stainless steel with P4 ultraprecision class. Raceways are superfinished with Ra ≤ 0.0005 μm and radial runout ≤ 0.8 μm, eliminating rotational deviation that distorts measurement readings.

2. Longterm Corrosionresistant Stability Martensitic stainless steel substrate achieves zero corrosion after 72hour saltspray testing. Suitable for humid laboratory environments with trace acidalkali fumes, preventing seizure and accuracy drift caused by corrosion.

3. Lownoise & Microvibration Performance for Detection Integrated brass cage with a friction coefficient of only 0.02. Operating vibration amplitude ≤ 0.002 mm, free of noise interference for optical and sensor detection modules.

4. Lowmagnetism & Clean Operation Lowpermeability material avoids interference with internal instrument lasers and magnetic sensors, meeting requirements for micronlevel precision measurement environments.

II. Practical Application Case: 3D Precision Dimension Measuring Instrument

Equipmentbearing Matching Solution

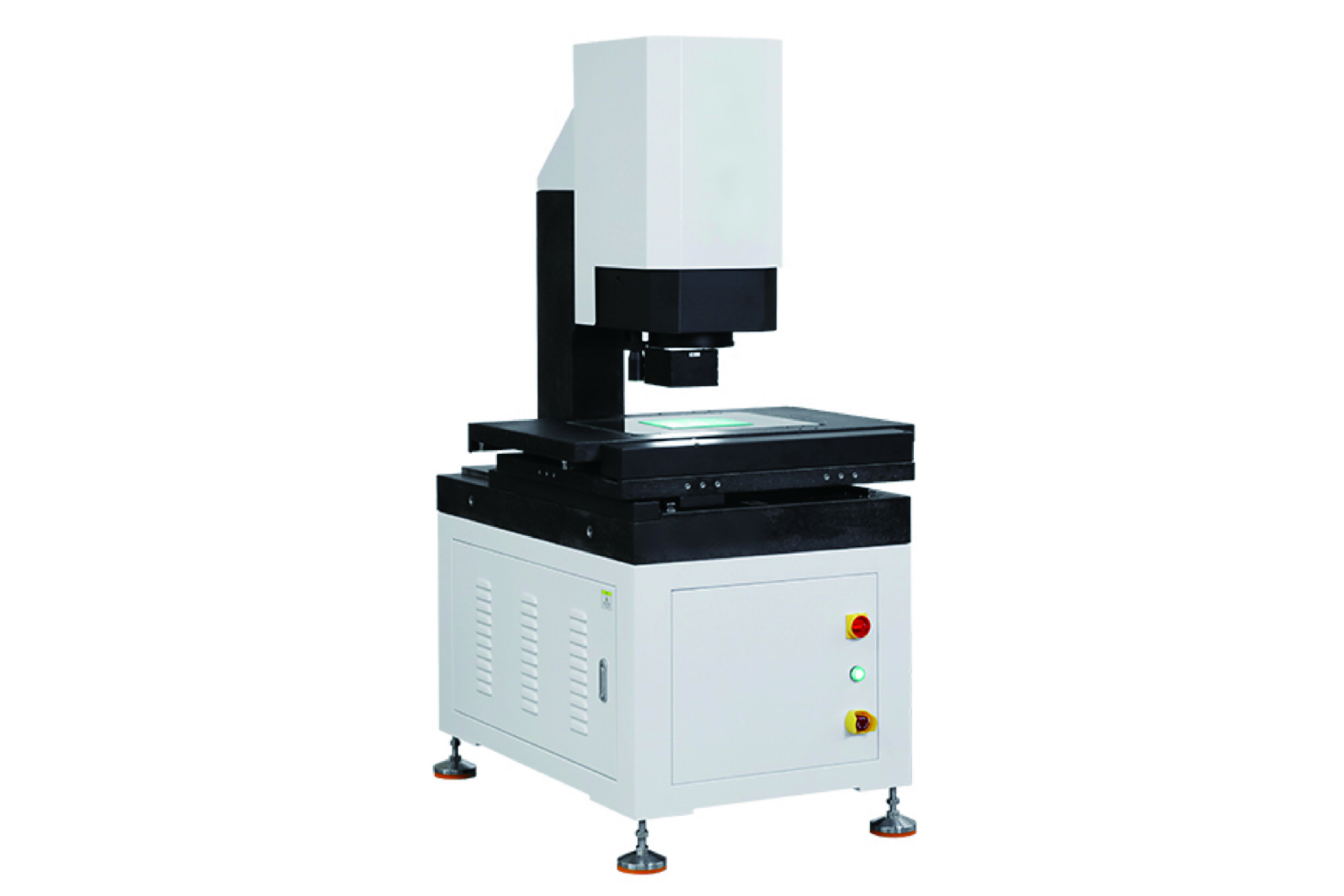

Equipment Model: CMM800 3D Precision Measuring Instrument

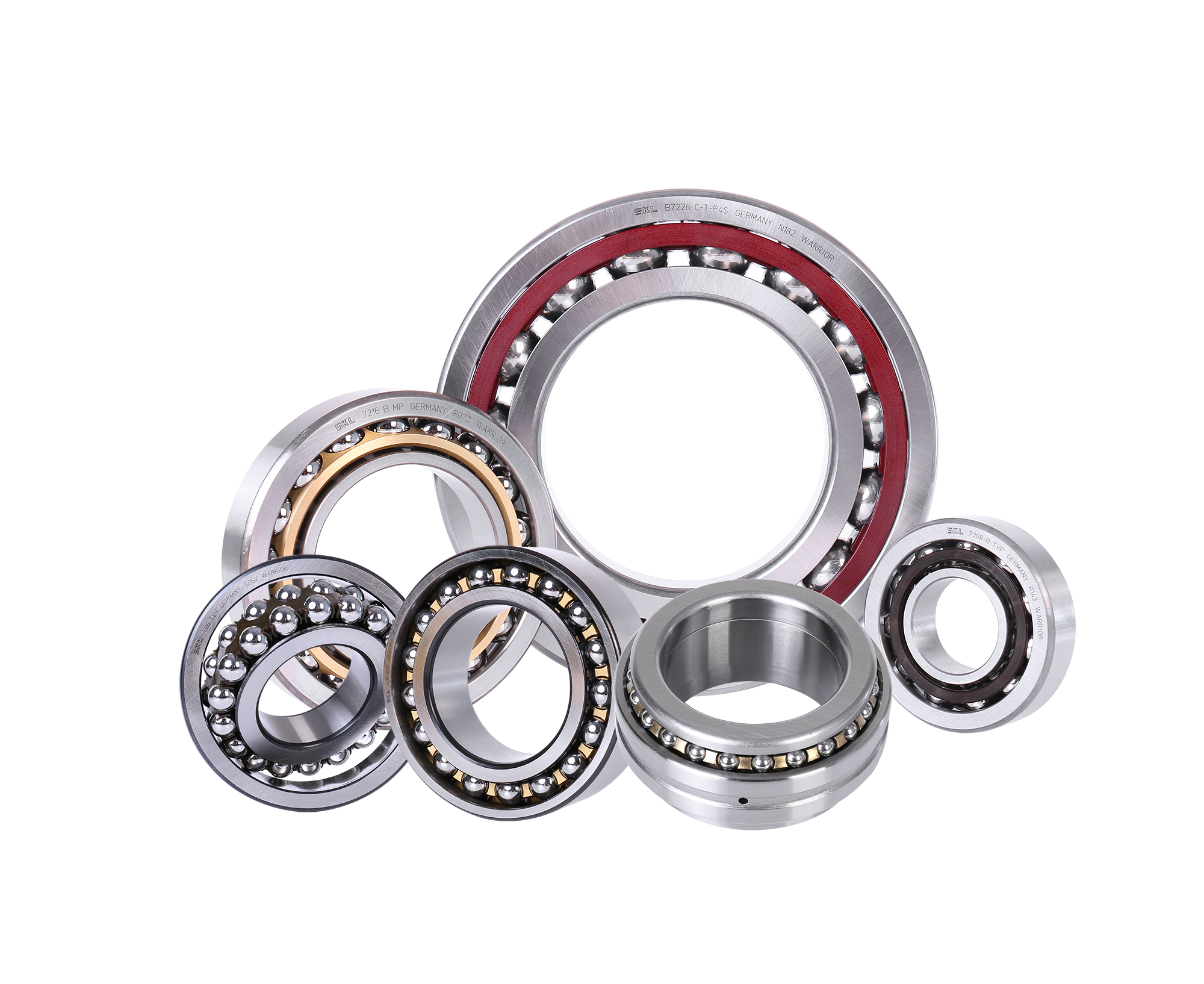

Zaxis lifting transmission: SKL SS62042RSP4 stainless steel deepgroove ball bearing (20×47×14 mm), bears reciprocating combined lifting loads. Lens finetuning rotary mechanism: SKL HCS7002CP4 stainless steel angular contact bearing (15×32×9 mm), mounted in pairs to guarantee repeat positioning accuracy for focusing.

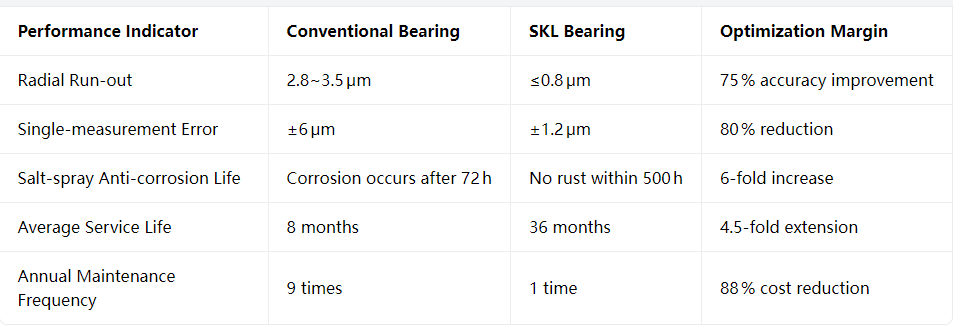

Table for performance comparison between oldtype and newtype bearings

III. Supporting Advantages of SKL Brand

Germanorigin Precision Engineering: 70year German R&D experience in precision bearings. Custom miniature stainless steel bearings available according to instrument dimensions; custom proposals delivered within 24 hours. Reliable Quality Control: Impurity content of stainlesssteel raw materials ≤ 0.008 %. Stabilized heattreated hardness HRC 5962, factory pass rate 99.8 %. Localized Delivery: Greater China hub in Shanghai maintains fullrange stock of stainless steel bearings; 24hour remote technical commissioning support. Cost Benefits: 18 % lower price versus imported stainlesssteel bearings of equivalent precision; 32 % reduction in totallifecycle comprehensive operating costs.

IV. Summary

Precision measuring instruments impose strict requirements on bearing accuracy, corrosion resistance, lowvibration performance and antimagnetic interference. Conventional steel bearings are prone to rust and rapid accuracy degradation, limiting equipment measurement stability. Featuring Germanorigin precision material and structural optimization, SKL stainless steel bearings deliver quantifiable improvements in measurement accuracy, equipment service life and maintenance cost. They constitute the preferred core transmission component for 3D measuring instruments, optical inspection equipment and laboratory precision devices.
