Bearings are the "heart" of electric motors, directly determining equipment precision, stability and service life. With nearly 70 years of industry expertise, German SKL Bearings delivers precise solutions for all core components of electric motors. This guide elaborates on selection principles, performance comparison, practical cases and brand strengths, helping you master the key points of SKL bearing selection.

1. Matching & Selection of SKL Bearings for Core Motor Components

Core components including motor rotors, main shafts and end covers operate under different load conditions, rotating speeds and working environments, thus requiring bearings with distinct performance features. SKL provides perfectly matched models for diverse applications.

Small Asynchronous Motor Rotor (Light load, mainly radial load) Matched Model: SKL S6202-2RSR (Deep Groove Ball Bearing) Key Advantages: Double rubber seals, low noise (≤23dB), Dimensions: 15×35×11 mm

Large Industrial Motor Rotor (Heavy load, high speed, large radial load) Matched Model: SKL 6322 (Spherical Roller Bearing) Key Advantages: Basic dynamic radial load up to 620kN, capable of compensating shaft misalignment, Dimensions: 110×240×50 mm

Servo Motor Main Shaft (High precision, high speed, combined load) Matched Model: SKL 7012-C-T-P4S (Angular Contact Ball Bearing) Key Advantages: P4 precision grade, radial runout ≤1μm, Dimensions: 60×95×18 mm

DC Motor End Cover (Medium load, frequent start-stop operation) Matched Model: SKL NU206-E-TVP2 (Cylindrical Roller Bearing) Key Advantages: Basic dynamic radial load 40.8kN, lubrication interval ≥8000 hours, Dimensions: 30×62×16 mm

General Motor Fan Shaft (Light load, high speed, dustproof) Matched Model: SKL 608-2Z (Deep Groove Ball Bearing) Key Advantages: Double metal shield seals, compact size, Dimensions: 8×22×7 mm

Variable Frequency Motor Shaft (Anti-electrocorrosion, complex load) Matched Model: SKL 6208-C3-J20AA (Insulated Deep Groove Ball Bearing) Key Advantages: Dielectric strength ≥1000VDC, stable operation in wide temperature range, Dimensions: 40×80×18 mm

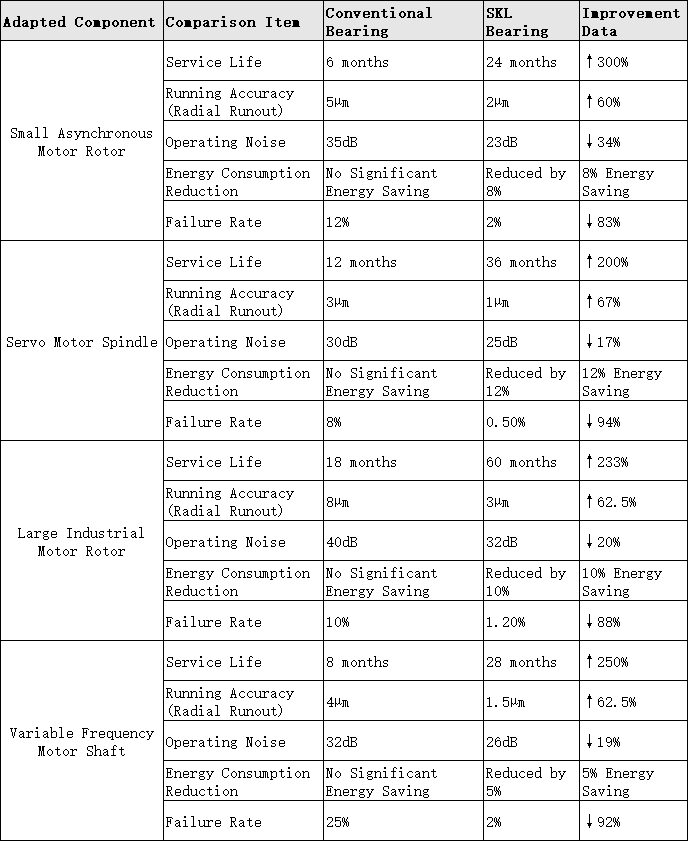

2. Performance Comparison: Before & After Adopting SKL Bearings

Optimized in materials and manufacturing processes, SKL bearings outperform traditional counterparts comprehensively. The data fully demonstrates its outstanding performance.

3. Practical Application Cases in Industrial Scenarios

Case 1: Servo Motor for Automated Production Line (Model: Panasonic MHMF082L1U2M) Matched Model: SKL 7012-C-T-P4S Existing Issues: Insufficient precision and short service life of original bearings, frequent equipment shutdowns Application Results: Positioning accuracy reaches ±0.001mm, product reject rate below 1%, bearing service life over 3 years, annual maintenance cost saved by 200,000 RMB. In service for 2 years.

Case 2: 1000kW High-Voltage Asynchronous Motor for Offshore Wind Power Matched Model: SKL 6322 + SKL 6208-C3-J20AA Existing Issues: Salt spray corrosion, frequent bearing failures and huge shutdown losses Application Results: Continuous stable operation over 60,000 hours, failure rate reduced to 2%, annual cost saving of 120,000 RMB per unit. In service for 3 years.

Case 3: Permanent Magnet DC Motor for Pharmaceutical & Chemical Centrifuge (Model: Z4-180-31) Matched Model: SKL NU206-E-TVP2 + SKL 6205-2RSR Existing Issues: Acid-base corrosion, severe vibration and frequent maintenance Application Results: Continuous operation for 5000 hours in pH 2-12 environment, maintenance interval extended to 3 months, vibration reduced by 60%, product qualification rate up to 99.7%.

4. Core Advantages of SKL

Choosing SKL means choosing long-term reliable protection.

· Technical Strength: Annual R&D investment accounts for 8% of total sales, owning more than 200 patents. Adopts vacuum quenching technology with material impurity content ≤0.008%. Custom solutions available with 24-hour response.

· Quality Assurance: Certified by 3 authoritative institutions, over 30 full-process inspection procedures. Product qualification rate reaches 99.8%, friction coefficient 0.03-0.05, maximum protection class IP66.

· Professional Service: Branches established in 12 countries worldwide. Asia-Pacific distribution center located in Shanghai. Over 10,000 standard models in stock, 24-hour delivery across Asia-Pacific region and 4-hour technical support response.

· Diversified Products: 10+ bearing categories and more than 18,000 models compatible with various electric motors, capable of cutting motor energy consumption by 5% to 12%.

5. Selection Summary

The core principle of SKL bearing selection for electric motors lies in matching bearings with actual working conditions of components: Rotor bearings prioritize load capacity and wear resistance; main shaft bearings focus on precision and rotational speed; variable frequency motor shaft bearings require excellent insulation and corrosion resistance.

Combining German exquisite craftsmanship, strict quality control and efficient global services, SKL bearings effectively extend service life, improve equipment precision, cut energy consumption and failure rate. It helps enterprises reduce operation and maintenance costs and realize long-term stable equipment operation.

Tip: Avoid selection mistakes — choose SKL for professional matching for all types of electric motors!
