Under Heavy Load, Precision Escort - Comprehensive Analysis of SKL Bearing Selec

Construction concrete machinery is the "core combat power" of modern infrastructure projects. From concrete mixing stations, pump trucks, mixer trucks to distributors and trowels, all operate under extreme working conditions of heavy load, high impact, high dust, and strong corrosion. As the "joints" of the transmission system, bearings directly determine the reliability, operational efficiency, and service life of equipment.

With German precision engineering, material innovation, and structural optimization, German SKL bearings have become the preferred solution in the concrete machinery field. This article systematically sorts out the selection, models, advantages, application changes, and practical value of SKL bearings in various core components of concrete machinery.

I. Precise Selection of SKL Bearings for Core Components of Concrete Machinery

The key transmission, support, and rotating parts of concrete machinery require bearings with different load characteristics. SKL provides special models for each scenario to achieve "one machine, one strategy" precise adaptation.

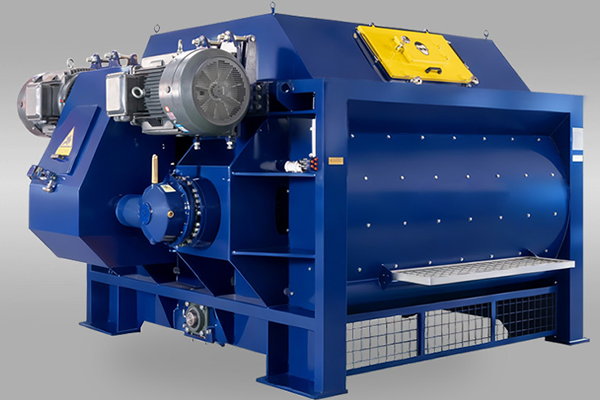

(I) Concrete Mixer (Twin-shaft/Forced Type)

The main shaft, reducer, mixing arm, and feeding hopper of the mixer are core force-bearing parts, subject to strong radial impact, continuous heavy load, and cement slurry corrosion.

1. Main Shaft Support Bearings

Selected Models: SKL 22324E1, 22328E1 (Spherical Roller Bearings)



Application Position: Support at both ends of the main mixing shaft of twin-shaft mixers



Core Advantages: Spherical raceway design can compensate for 0.5°-1.5° shaft bending and assembly errors, avoiding edge stress concentration; optimized roller profile increases rated dynamic load by 30%; carburized steel material + DLC coating, surface hardness HRC 60-62, and micro-pitting resistance increased by 50%

2. Reducer Input/Output Shaft Bearings

Selected Models: SKL NUP2216-E, NUP319-E (Cylindrical Roller Bearings); 32218-A, 32220-A (Tapered Roller Bearings)



Application Position: High-speed shaft and low-speed output shaft of the mixer reducer



Core Advantages: Cylindrical roller bearings have strong pure radial load-bearing capacity and impact resistance; tapered roller bearings can bear both radial and axial composite loads, with adjustable clearance, suitable for frequent forward and reverse rotation of the reducer

3. Feeding Hopper Pulley/Winch Bearings

Selected Models: SKL 6207-2RSR, 6306-2RSR (Deep Groove Ball Bearings)



Application Position: Feeding hopper lifting pulley, winch drum



Core Advantages: Double-lip seal (2RSR) reaches IP6X dustproof level, preventing dust and mortar from entering; low-friction design, suitable for high-frequency start-stop of hopper lifting

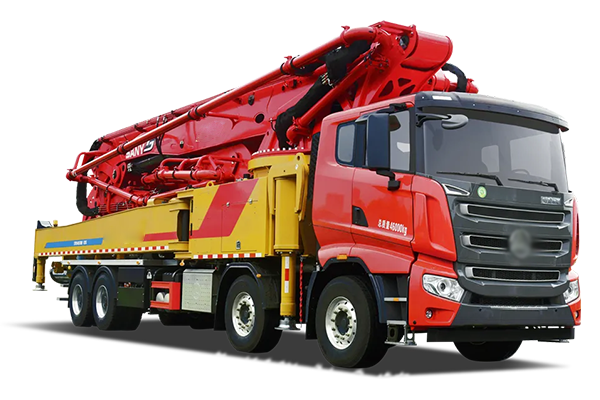

(II) Concrete Pump Truck (Boom/Rotation/Pumping System)

Pump trucks are subject to composite overturning moment, boom telescopic impact, and long-term continuous pumping, with the pumping cylinder as the core bearing application scenario.

Pumping System Main Bearings

Selected Models: SKL 22330-E1 (Spherical Roller Bearings), 23020-E1 (Solid Oil Spherical Roller Bearings)



Application Position: Pumping piston drive shaft, hopper mixing shaft



Core Advantages: Solid oil lubrication design enables 5-year maintenance-free operation in high-dust and mortar environments; strong anti-eccentric load capacity, suitable for severe vibration during pumping

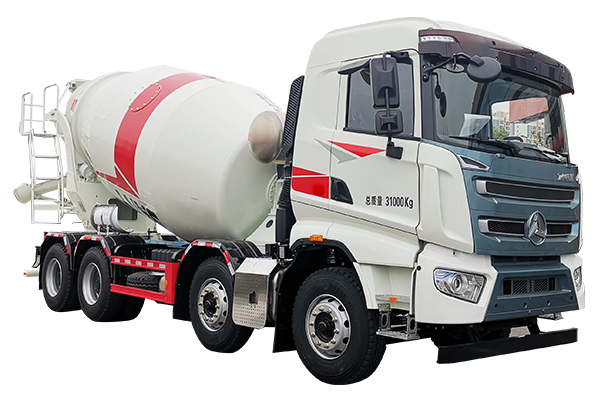

(III) Concrete Mixer Truck

The mixer drum of the mixer truck rotates atlow speed under heavy load and is installed at an incline, with the reducer and roller support as the core bearing application areas.

1. Drum Reducer Main Bearings

Selected Models: SKL 22222-E1, 22224-E1 (Special Spherical Roller Bearings)



Application Position: Reducer support at the front end of the mixer truck drum



Core Advantages: Special internal structure, suitable for inclined installation of the drum (angle β=10°-15°); load-bearing capacity increased by 40% compared with general bearings, and continuous operation life exceeds 30,000 hours

2. Drum Rear Roller Bearings

Selected Models: SKL 32018-X, 32020-X (Tapered Roller Bearings)



Application Position: Symmetrical roller support at the rear end of the drum



Core Advantages: Installed in pairs to bear radial load, wear resistance increased by 2 times; laminated phenolic resin cage, suitable for continuous rotation of the drum

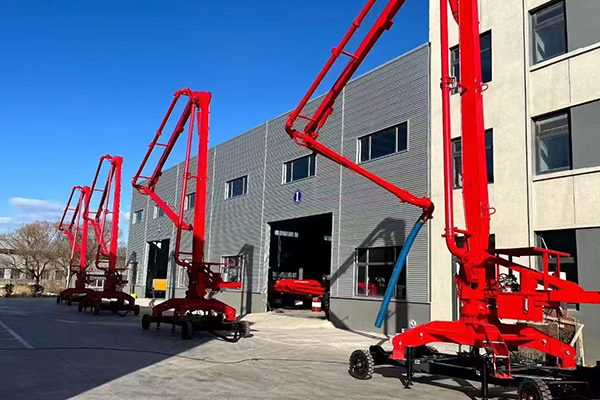

(IV) Concrete Distributor/Trowel



Distributor Drive Drum Bearings: SKL 22216-E1 (Double-row Angular Contact Ball Bearings), suitable for truss rotation and heavy load support



Trowel Main Shaft/Transmission Bearings: SKL 6205-2RSR, 7206-B (Angular Contact Ball Bearings), low resistance and high speed, suitable for high-speed operation of trowels

II. Core Advantages of SKL Bearings: Solving Pain Points of Concrete Machinery Working Conditions

1. Innovation in Materials and Surface Treatment

The raceway is made of 20CrNiMoA carburized steel, with a carburized layer depth of 2.0-2.5mm and a core toughness of ≥80J/cm², balancing high strength and impact resistance



Rolling elements can be silicon nitride ceramics (HIP sintering), with a compressive strength of ≥3800MPa, 40% lighter than steel, and a friction coefficient reduced to 0.03



Surface DLC/special carburizing treatment ensures stability in a wide temperature range of -40℃ to 180℃, and corrosion resistance to cement slurry and chloride ions is increased by3 times



2. Structural and Lubrication Optimization

Spherical roller bearings adoptsymmetrical barrel-shaped rollers + spherical raceways, increasing load distribution uniformity by 40% and avoiding local overload failure



Window-type cages are made of laminated phenolic resin/nylon 66, which are wear-resistant, high-temperature resistant, and not easy to deform or break



Patented lubrication groove + solid oil design: Grease lubrication speed limit is 3500rpm, and solid oil bearings achieve maintenance-free operation, reducing maintenance costs by 76%

3. Sealing and Reliability Upgrade

Double-lip nitrile rubber seal (2RSR) achieves IP6X dust and water resistance, completely blocking concrete dust and mortar from entering the raceway



Accuracy grades coverP0-P4, with vibration value as low as 3.5mm/s, making equipment operation more stable



Service life is 2-3 times longer than that of traditional bearings, and failure rate is reduced by 75%, reducing the frequency of shutdown maintenance

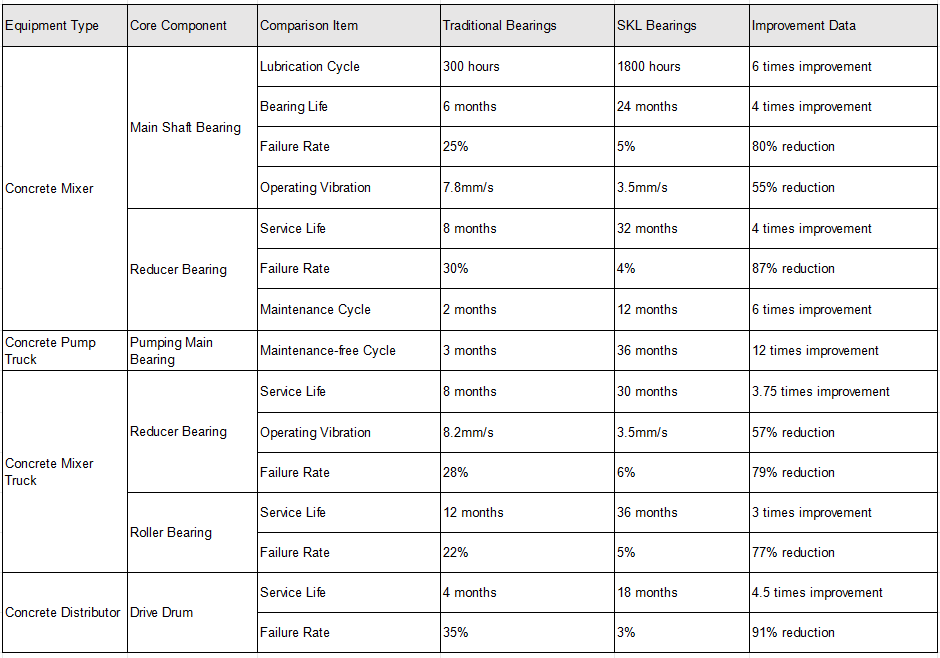

III. Comparative Data on Application Changes

Core Transformation Value

Significant Reduction in Operation and Maintenance Costs: Bearing replacement frequency is reduced by 70%, and the comprehensive cost of labor, accessories, and shutdown losses is reduced by more than 60%



Significant Improvement in Equipment Efficiency: Continuous operation time is extended by 50%, and trouble-free operation exceeds 60,000 hours



Adaptation to Extreme Working Conditions: Solves the problems of traditional bearings such as "easy damage under heavy load, easy jamming by dust, and easy rust by corrosion", and adapts to various harsh construction environments

IV. Practical Application Cases: SKL Bearings Empower Engineering Practice

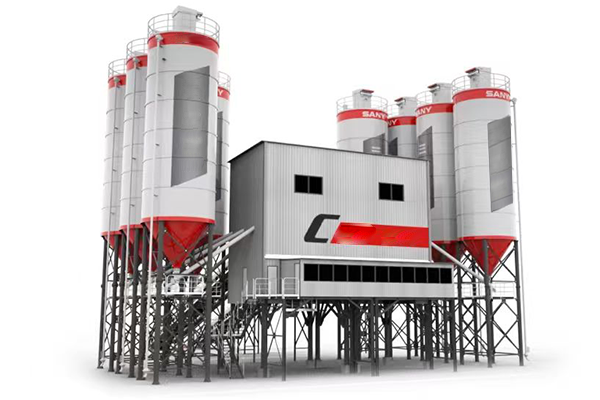

Case 1: A Large Commercial Concrete Mixing Station (Twin-shaft JS3000 Mixer)

Before Transformation: Traditional spherical roller bearings were used for the main shaft, which needed to be replaced every 5 months, with 4 shutdown maintenance times per year, each maintenance taking 8 hours, and annual losses exceeding 150,000 yuan



SKL Selection: Main shaft 22328-E1, reducer NUP319-E, feeding hopper 6306-2RSR



Transformation Effect: Continuous operation for 26 months without failure, annual maintenance times reduced to 0, annual cost savings of 120,000 yuan; mixing shaft vibration reduced by 40%, and concrete mixing uniformity improved

Case 2: A Heavy Industry 47-meter Pump Truck (Pumping System)

Before Transformation: Traditional bearings were used for the main pumping bearing, which required maintenance every 3 months. Vibration and abnormal noise were prone to occur during pumping, affecting operational stability



SKL Selection: Main pumping bearing 22330-E1



Transformation Effect: The main pumping bearing is maintenance-free for 36 months, the pumping system operates continuously for more than 1200 hours, the bearing temperature is stable below 65℃, 15℃ lower than before transformation, and operational stability is greatly improved

Case 3: A Logistics Group's 12-cubic Meter Concrete Mixer Truck Fleet (50 Units)

Before Transformation: The drum reducer bearings were replaced every 8 months, and the roller bearings failed after 1 year. The annual bearing replacement cost of the fleet was 800,000 yuan



SKL Selection: Reducer 22222-E1, roller 32020-X



Transformation Effect: The service life of a single bearing is extended to 30 months, the annual replacement cost of the fleet is reduced to 220,000 yuan, saving 72.5%; the vehicle operation vibration is reduced, and the driver's driving comfort is improved

V. Core Advantages of SKL Company: Industry-leading Comprehensive Strength

1. German Precision Engineering Heritage, Over 60 Years of Technical Precipitation

Founded in Leverkusen, Germany in 1958, SKL has been deeply engaged in the high-end bearing field for 68 years, adhering to German original production, following DIN and ISO international standards, with top-tier process precision and quality control system in the industry.

2. Customized R&D Capability, Adapting to Industry-specific Needs

With 5 global technology centers, it customizes and develops special models, materials, and structures for the four major pain points of concrete machinery: heavy load, impact, corrosion, and dust, providing a full-process solution of "selection-design-lubrication-maintenance".

3. Full Industrial Chain Quality Control

From raw material smelting, precision processing to heat treatment, surface coating, and assembly inspection, the whole process is independently controllable; each bearing passes 100% load testing, life simulation, and corrosion resistance testing to ensure 100% factory qualification rate.

4. Perfect Service System, Full Lifecycle Guarantee

Provides one-stop services including selection calculation, installation guidance, condition monitoring, and predictive maintenance; with more than 30 service outlets in China, 24-hour response to solve equipment after-sales pain points and reduce customer use risks.

5. Import Substitution Benchmark, High Cost-performance Advantage

Performance is comparable to international first-tier brands, with a price 20%-30% lower; delivery cycle is 50% shorter, breaking the monopoly of imported high-end bearings, helping concrete machinery enterprises reduce costs, increase efficiency, and enhance core competitiveness.



VI. Conclusion

In the context of the upgrading of construction concrete machinery towards high efficiency, large scale, and intelligence, the selection of bearings as core components has shifted from "usable" to "durable, stable, and low-consumption". With material innovation, structural optimization, and customized solutions, SKL bearings accurately match the working conditions of various core components of concrete machinery, achieving a leap from "frequent failures" to "long-term stability", which not only reduces equipment operation and maintenance costs but also improves engineering operation efficiency.

In the future, with the continuous expansion of infrastructure projects and the increasingly complex construction conditions, SKL bearings will rely on continuous technological iteration and service upgrading to become a "hardcore support" for the high-quality development of the concrete machinery industry and inject lasting power into global infrastructure projects.
