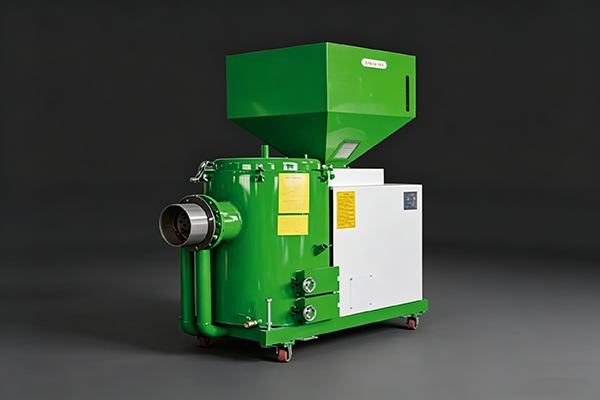

Biomass pellet burners have become mainstream environmentally friendly equipment in industrial heating, drying and other fields. The key to their continuous and stable operation lies in the precise selection of bearings, the core transmission components. These machines operate under harsh conditions including high temperature, high dust, heavy load and continuous operation. Traditional bearings often suffer from rapid wear and seal failure. German SKL bearings, featuring German precision engineering and customized adaptability, provide systematic solutions for key components of burners, effectively improving equipment stability and reducing operation and maintenance costs.

I. Matching of Core Components of Biomass Pellet Burners with SKL Bearings

The working conditions of core modules of burners vary significantly. SKL provides dedicated bearing models according to load, temperature and other requirements to achieve precise matching.

(1) Feeding System (Screw Feeding Shaft, Inlet Auger)

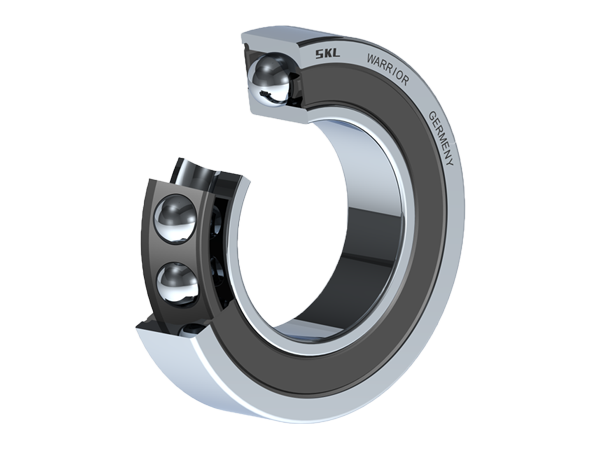

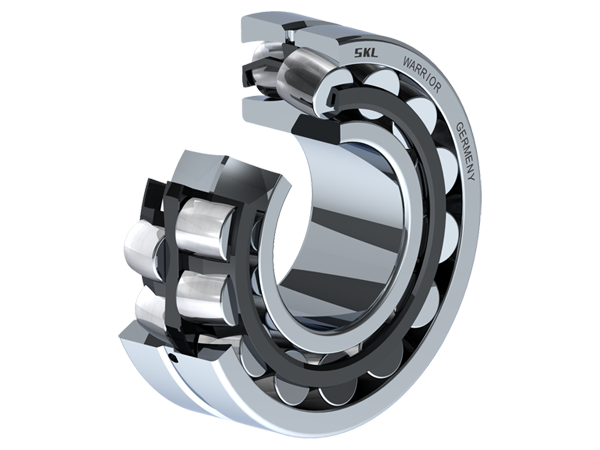

Working conditions: medium-low speed (100–300 r/min), medium radial load, high dust, temperature 60–120℃, vulnerable to impurity impact.Recommended models: SKL 6205-2RSR (Deep Groove Ball Bearing), SKL 22206-E1 (Spherical Roller Bearing).Advantages: dual-lip sealing with 99.9% dustproof efficiency; self-aligning structure compensates for shaft deformation and installation errors; impact-resistant and anti-jamming.

(2) Slag Discharge System (Slag Discharge Auger, Slag Pusher Drive Shaft)

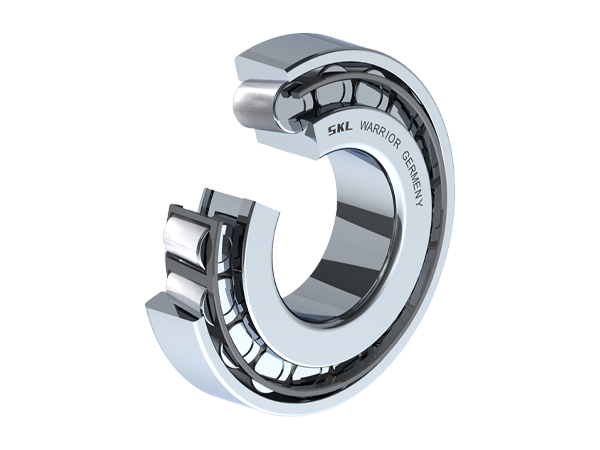

Working conditions: heavy load, low speed (50–200 r/min), high temperature (150–250℃), high dust, large axial load, frequent start-stop cycles.Recommended model: SKL 32208-A (Tapered Roller Bearing).Advantages: withstands combined loads; vacuum quenching heat treatment + DLC coating; high temperature resistance and wear resistance increased by 3 times; prevents fiber entanglement.

(3) Fan System (Combustion Air Fan, Induced Draft Fan Spindle)

Working conditions: high speed (1500–3000 r/min), medium-low load, temperature 120–180℃, frequent vibration, requiring low-noise operation.Recommended models: SKL 6306-2Z (Deep Groove Ball Bearing), SKL 7206-B-JP (Angular Contact Ball Bearing).Advantages: large clearance for high-speed heat dissipation; low friction coefficient reducing energy consumption by 25%; high precision ensures smooth and stable operation.

(4) Main Drive Shaft System (Main Drive Shaft, Gearbox)

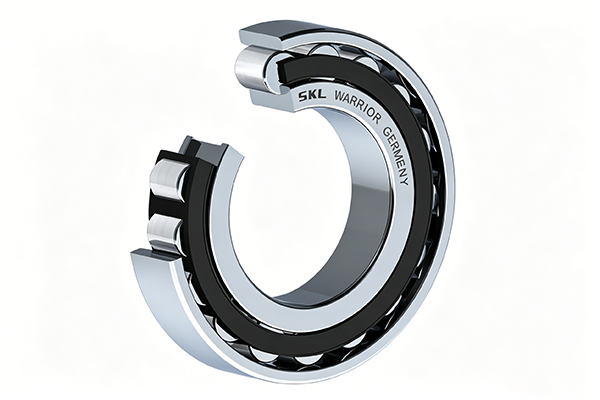

Working conditions: heavy load, medium-high speed, 24-hour continuous operation, combined loads, large temperature fluctuations (80–200℃).Recommended models: SKL 22310-E1-K (Spherical Roller Bearing), SKL N310-E (Cylindrical Roller Bearing).Advantages: self-aligning function offsets thermal deformation; high load capacity; service life over 20,000 hours of continuous operation; efficient power transmission.

II. Core Advantages of SKL Bearings: Solving Operating Pain Points

Material innovation: special stainless steel substrate for corrosion resistance; DLC composite coating for high temperature resistance and wear resistance; maintenance-free period extended to 2 years with solid self-lubrication.Structure optimization: triple-lip dustproof sealing; load-optimized design reduces stress concentration; thermally stable structure adapts to wide temperature range, avoiding jamming and loosening.Stable precision: precision grade P0–P5, compliant with German DIN standards; mean time between failures reaches 18,000 hours, 3–5 times that of ordinary bearings.

III. Application Changes Before and After Selection

(1) Pain Points of Traditional Bearings

Short service life (replacement required every 3–6 months), high failure rate (over 30%), high energy consumption, frequent maintenance, resulting in high operation and maintenance costs.

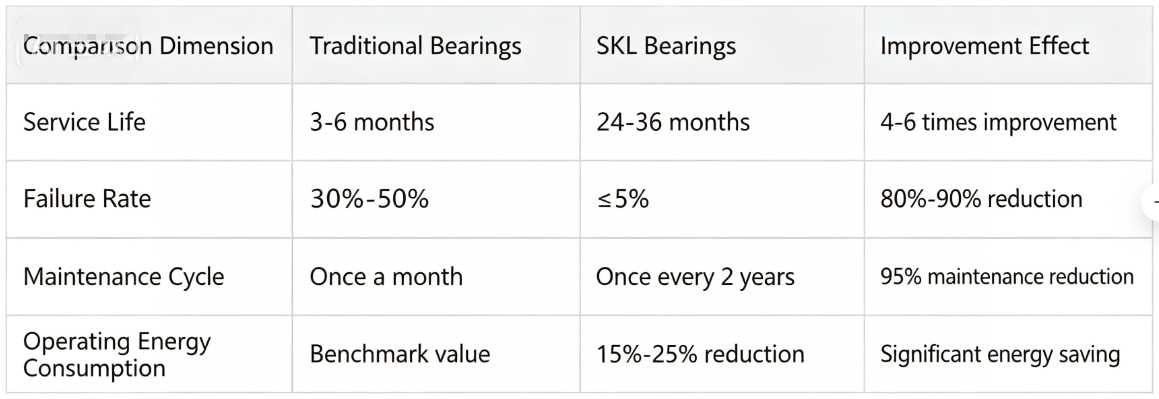

(2) Application Effects of SKL Bearings

(3) Actual Case Verification

A biomass thermal power company equipped 40 biomass pellet burners with ordinary bearings originally.Over 20 sets of bearings were replaced monthly, with annual O&M costs exceeding 150,000 RMB.Frequent shutdowns affected heating stability.After switching to dedicated SKL bearings:

· 24 consecutive months of operation without bearing failures;

· Annual bearing replacements reduced to within 2 sets;

· Annual O&M costs reduced to less than 20,000 RMB, saving over 85%;

· Burner heating efficiency increased by 8%, saving over 300 tons of biomass fuel per year.

IV. Core Strengths of SKL

Technology leadership: 68 years of German expertise, over 200 core patents, compliant with DIN and ISO standards, full-process precision control.Customized adaptation: dedicated team provides one-to-one selection and non-standard customization with 24-hour rapid response.Comprehensive service: 48-hour delivery from Asia-Pacific distribution center, full life cycle pre-sales and after-sales support.Cost-effectiveness: German quality with purchase cost 20%–30% lower than similar imported brands; overall O&M cost reduced by over 50%.

Conclusion

SKL bearings are precisely matched to the harsh operating conditions of biomass pellet burners, solving the pain points of traditional bearings and achieving long-lasting, stable, efficient and low-consumption operation, providing core support for the high-quality development of the biomass energy equipment industry.
