As the "moving joint" of mechanical presses, bearings bear loads, transmit power and ensure precise motion. With German precision quality and full-scenario adaptability, SKL bearings have become the preferred solution for high-end mechanical presses.This article focuses on SKL bearing selection for core components of mechanical presses, analyzes application scenarios, models and advantages, compares application changes, dissects SKL's core competitiveness, and provides a reference for industry selection.

1. Details of Core Components of Mechanical Presses and SKL Bearing Selection

Mechanical presses operate under heavy load, high-frequency impact, high precision and high dust conditions. Bearing selection shall follow the principles of "working condition adaptation, performance matching and priority of service life".

(1) Spindle System: Adaptation of High Precision and High Rigidity

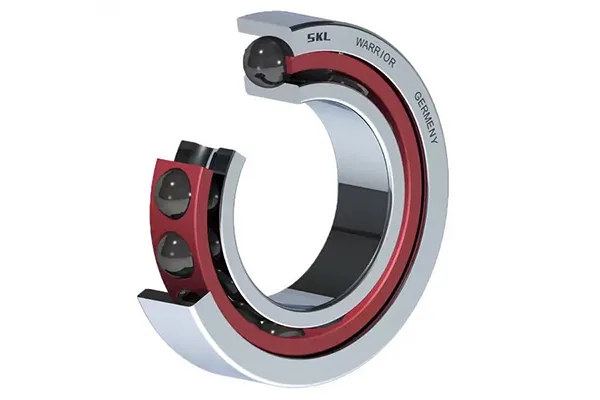

The spindle bears radial + axial loads with rotational accuracy of P4/P2 level. SKL adopts a composite support of "angular contact ball bearing + cylindrical roller bearing" to ensure high precision and high rigidity.

(2) Crankshaft and Connecting Rod: Adaptation of Heavy Load and Impact Resistance

The crankshaft bears thousands of tons of forging impact loads, and the connecting rod needs to convert motion forms. SKL spherical roller bearings and tapered roller bearings balance heavy load and self-aligning requirements to avoid early failure.

(3) Gearbox: Adaptation of High Speed and Low Noise

The gearbox requires low-friction and low-vibration operation. The combination of SKL deep groove ball bearings and thrust cylindrical roller bearings achieves high efficiency and low noise, reducing energy consumption and maintenance costs.

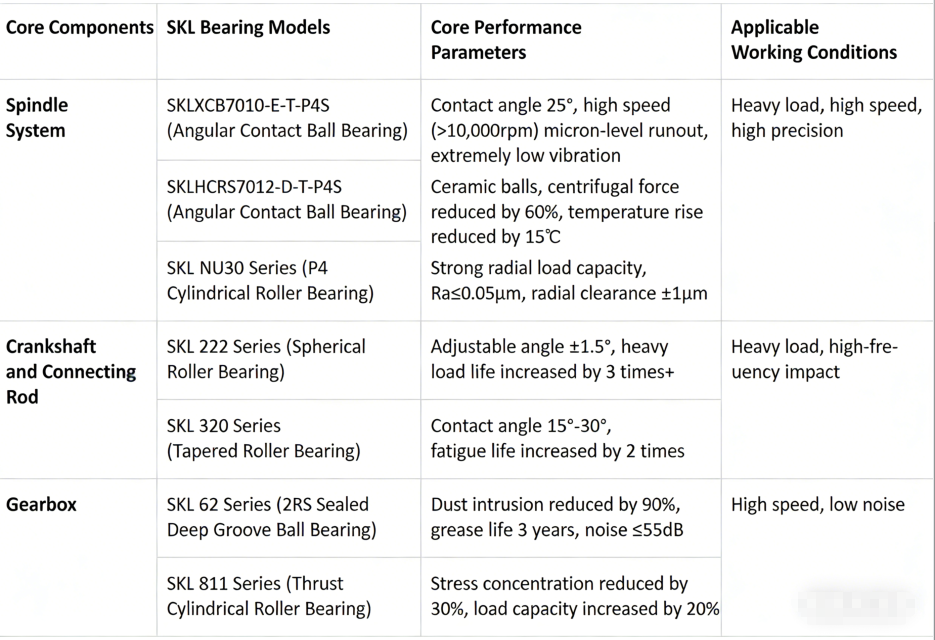

SKL customized solutions and core data are shown in the table below:

2. Changes Before and After Application of Bearings in Mechanical Presses

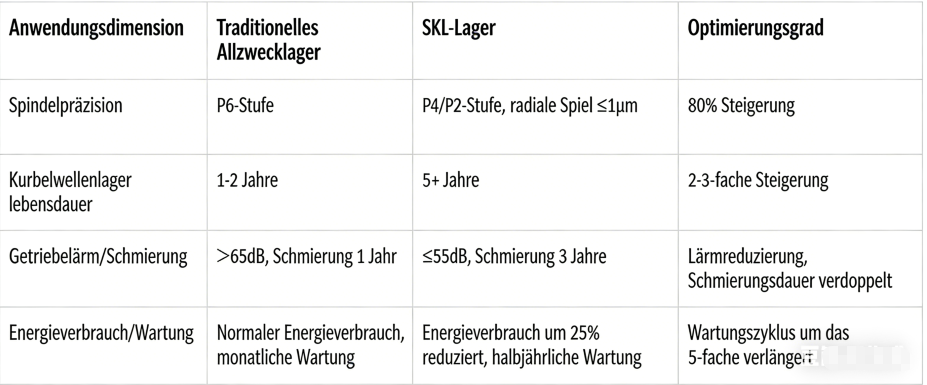

With the upgrading of mechanical presses towards high speed and high precision, bearing applications have evolved from general-purpose to customized. SKL bearings have driven three major transformations, with core data comparison in the table below:

(1) Performance Demand: From "Basic Operation" to "Efficient Stability"

Traditional bearings have low precision and short service life. SKL bearings completely solve this pain point, achieving comprehensive optimization of precision, service life and energy consumption.

(2) Selection Logic: From "General Adaptation" to "Working Condition Customization"

Early general selection was prone to failure. SKL provides customized models for core components such as spindles, crankshafts and gearboxes to accurately match working conditions.

Case: After replacing the spindle of an 8,000-ton servo press with SKLHCRS7012-D-T-P4S + NU30 series bearings, the temperature rise dropped from 85℃ to 55℃, and the limit speed increased by 50%.

(3) Maintenance Cost: From "High-Frequency Maintenance" to "Long-Life Maintenance-Free"

SKL bearings optimize sealing and lubrication, greatly reducing maintenance frequency and cost and improving production efficiency.

Case: After a auto parts enterprise replaced press bearings with SKL 222, 62 and 811 series bearings, the maintenance cycle was extended by 5 times, production efficiency increased by 30%, and reject rate ≤3%.

3. Core Advantages of SKL

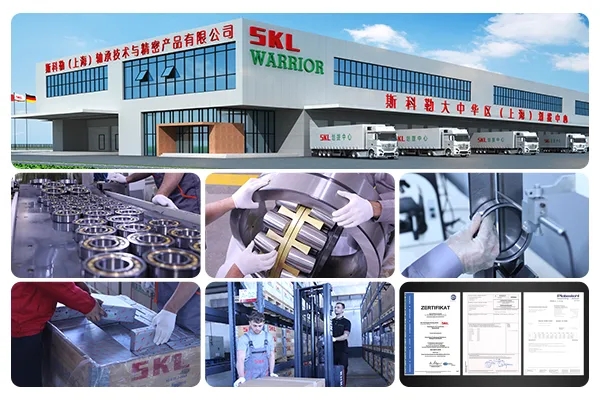

Founded in 1958 and headquartered in Leverkusen, Germany, SKL Technologies Germany GmbH has been deeply engaged in the high-end bearing field for more than 60 years. Its core advantages focus on four dimensions: technology, products, service and cost performance, forming a full-chain competitiveness.

(1) German Precision Engineering & Technological Advantages

Relying on military-grade R&D and precision machining, material innovation improves fatigue resistance and high temperature resistance. Raceway roundness ≤0.5μm, surface roughness Ra≤0.05μm, ceramic ball bending strength >1200MPa, precision covering P2-P6 levels, building a solid quality barrier.

(2) Full Series Product Coverage

Products cover all core component demands, with over 18,000 models in stock, conventional products delivered within 2 days, and non-standard customization supported to adapt to special working conditions.

(3) Global Service System

Global layout of distribution and technical centers, providing 7×24-hour logistics services, issuing selection reports within 48 hours, delivering urgent orders within 7 days, realizing efficient response of logistics and technical support to ensure production needs.

(4) High Cost Performance Advantage

Cost optimized on the premise of German quality, product cost reduced by 15%-20%. Spindle bearings are 40% cheaper than similar imported brands with a service life of 5 years (average 3 years for similar imported products), breaking high-end premium and reducing customers' long-term operating costs.

4. Conclusion

Bearing selection for mechanical presses directly affects equipment performance and operating costs, requiring suitable products based on working conditions.With German technology, full series coverage, customized solutions and high cost performance, SKL bearings meet core demands of spindles, crankshafts and gearboxes, promoting the upgrading of bearing applications.In the future, SKL will deepen technological innovation, improve service system, and provide better bearing solutions for the metal forming industry.
